Baja Designs Front Bumper Light Kit 20 inch OnX6+ Series Driving/Combo Pattern Clear Lens

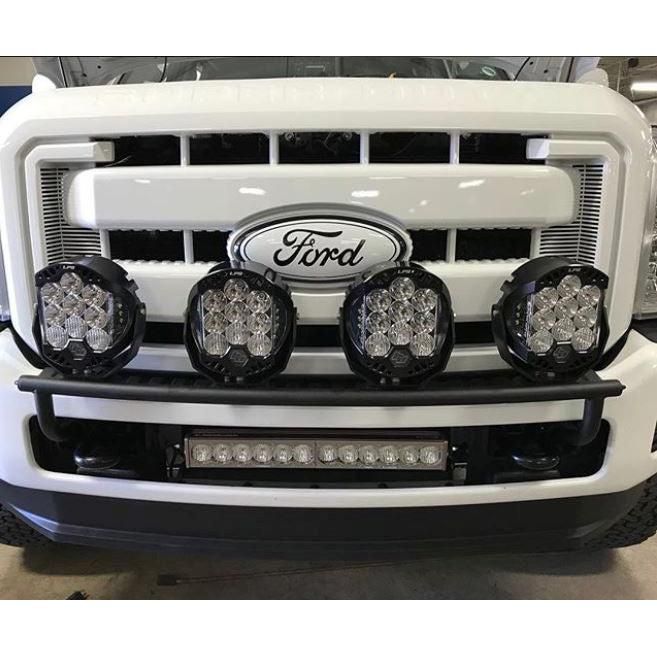

Set your Ford Super Duty apart from the rest than with some Baja Designs LED Light Bars. Our Ford Super Duty LED Light Bar Mount Kit has been specifically designed for 2011-2014 Ford Super Duty models giving you that clean OEM look.
This mount kit allows for easy installation of a 20 inch OnX6 LED Light Bar. This mount kit also comes equipped with a wiring harness that allows you to use a separate auxiliary switch.
Baja Designs Features:
- Satisfactions Guarantee -30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It.
- MoistureBlock- Waterproof, Rain Proof, Submersible
- CopperDrive - Only LED Driven At 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
Specifications:
- Lumens: (High) 24,920 (Low) 18,460 Utilizing 12 Cree LEDs
- Wattage/Amps: (High) 216W / 16.6A (Low) 160W / 12.0A
- Dimensions: 20 inch x 4.29 inch x 2.69 inch
- Weight: 7.85 lbs
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft and Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)

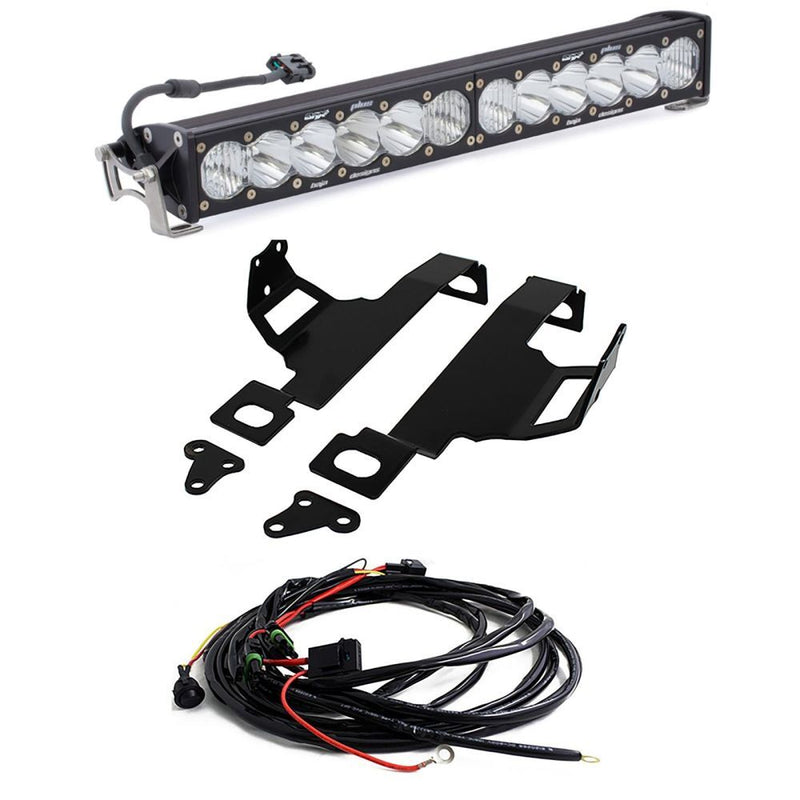

Includes:
- x2 2011-2014 Ford Super Duty Mounting Brackets
- x1 OnX6+, 20 inch Driving/Combo LED Light Bar
- Wiring Harness
- Hardware
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degree) and spot (9 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
Spot: A longer and narrower 9 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
0Brand: Baja Designs
Part Number: 447790
Fitment:
- Ford F-250 Super Duty Base 2011-2016
- Ford F-250 Super Duty FX4 2011-2016
- Ford F-250 Super Duty King Ranch 2011-2016
- Ford F-250 Super Duty Lariat 2011-2016
- Ford F-250 Super Duty Platinum 2011-2016
- Ford F-250 Super Duty XL 2011-2016
- Ford F-250 Super Duty XLT 2011-2016
- Ford F-350 Super Duty King Ranch 2011-2016
- Ford F-350 Super Duty Lariat 2011-2016
- Ford F-350 Super Duty Platinum 2011-2016
- Ford F-350 Super Duty XL 2011-2016
- Ford F-350 Super Duty XLT 2011-2016
Note: Image is for reference only, actual product may vary slightly.
