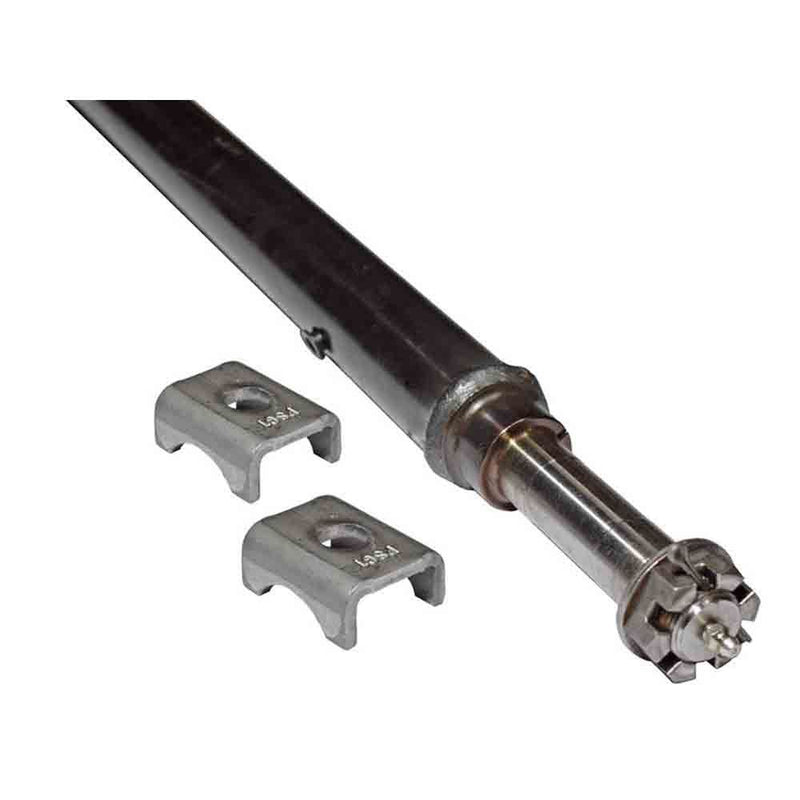

2,200 lb. straight trailer axle tube with spindles, castle nuts and cotter pins. Axle tube is 1-3/4" diameter x 3/16" wall round tubing. This axle DOES NOT include flanges for mounting electric or hydraulic brakes. May be used with 4 or 5-lug hubs, sold separately. Axle is supplied with loose spring seats which must be welded to the axle tube to complete the installation.

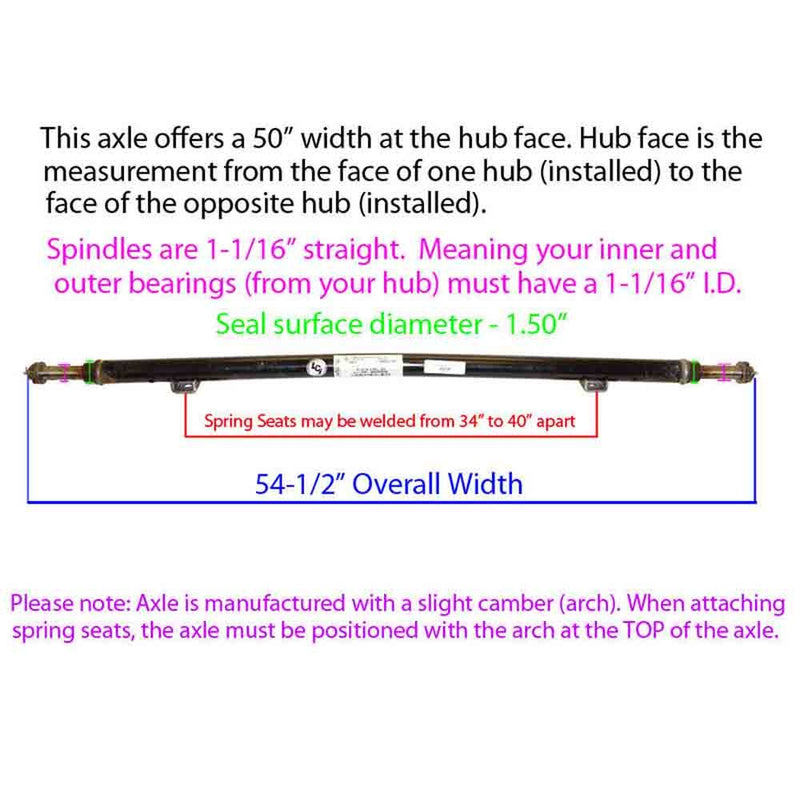

Axles are manufactured with a slight camber (arch). When attaching spring seats, axle must be positioned with the arch at the top of the axle.
- Axles may be special ordered with hub face widths from 24 to 94 inches. Please contact customer service.
- Spring seats are shipped loose and must be welded to the axle to complete the installation
- 1-1/16 inch straight spindles with castle nuts and cotter pins
- Used on boat trailers, tent campers, utility and snowmobile trailers
