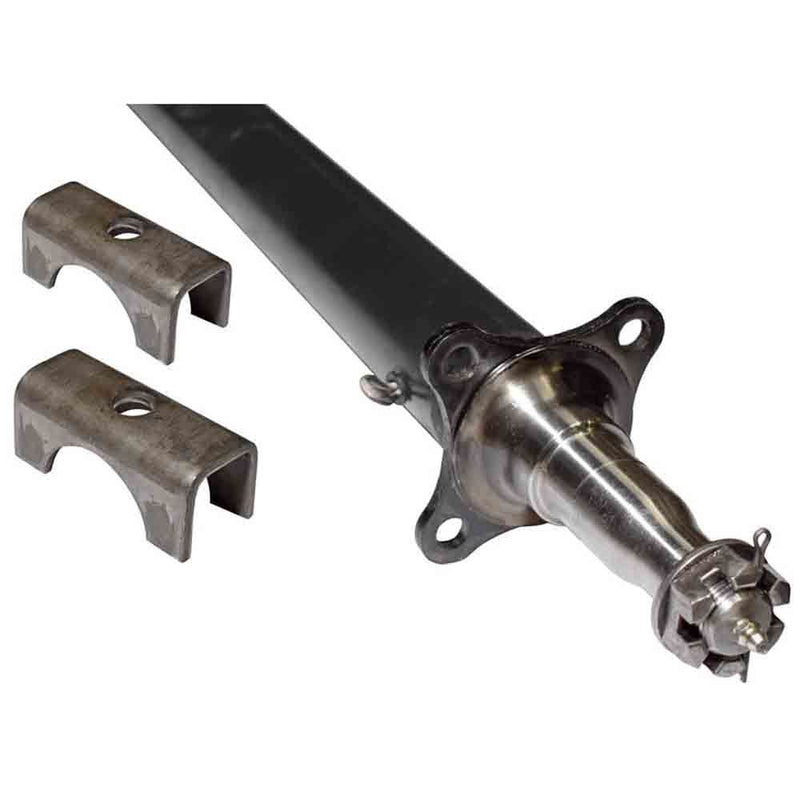

3,500 lb., straight trailer axle tube with spindles, castle nuts and cotter pins. Axle is equipped with 4-bolt brake flanges for mounting electric or hydraulic brakes, sold separately. Axle tube is 2-3/8" diameter x 3/16" wall round tubing. Axle is supplied with loose spring seats which must be welded to the axle tube to complete the installation.

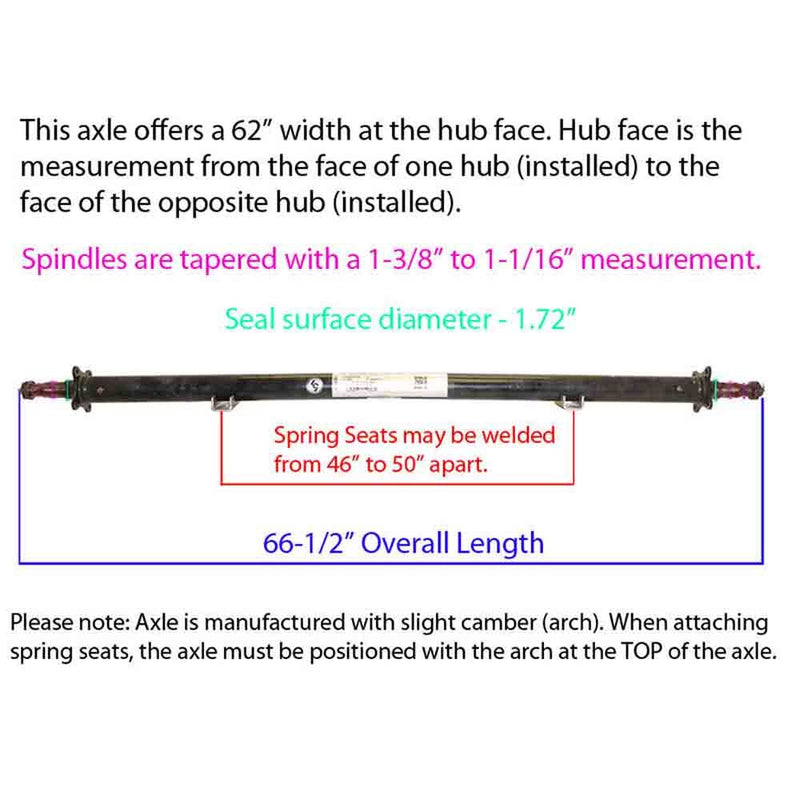

Axles are manufactured with a slight camber (arch). When attaching spring seats, axle must be positioned with the arch at the top of the axle.
- Axles may be special ordered with hub face widths from 24 to 94 inches. Please contact customer service.
- Spring seats are shipped loose and must be welded to the axle to complete the installation

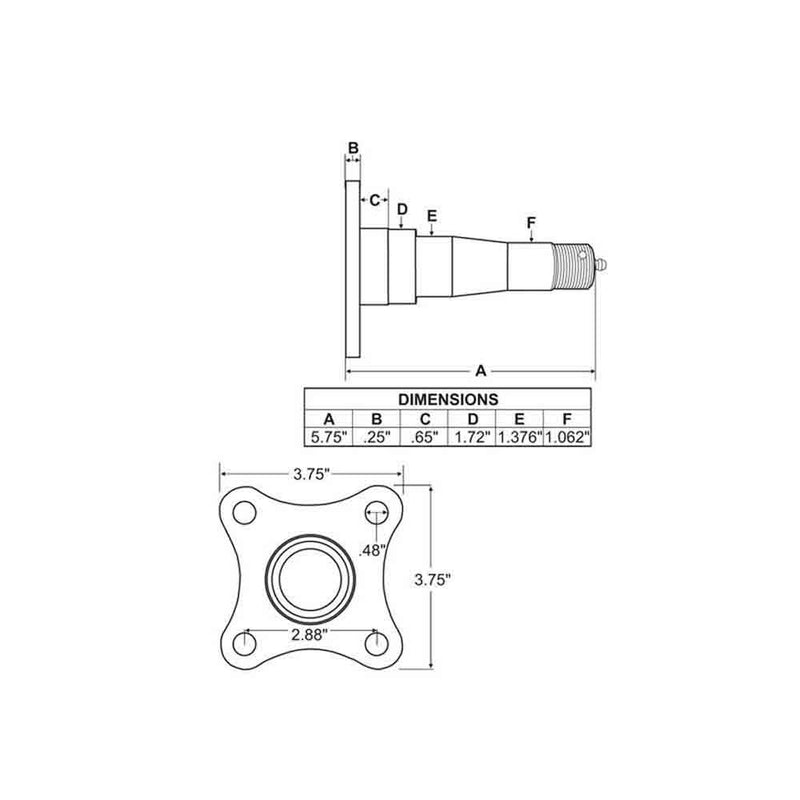

- 1-3/8 inch x 1-1/16 inch tapered spindles with castle nuts and cotter pins
- Used on boat trailers, tent campers, utility and snowmobile trailers
