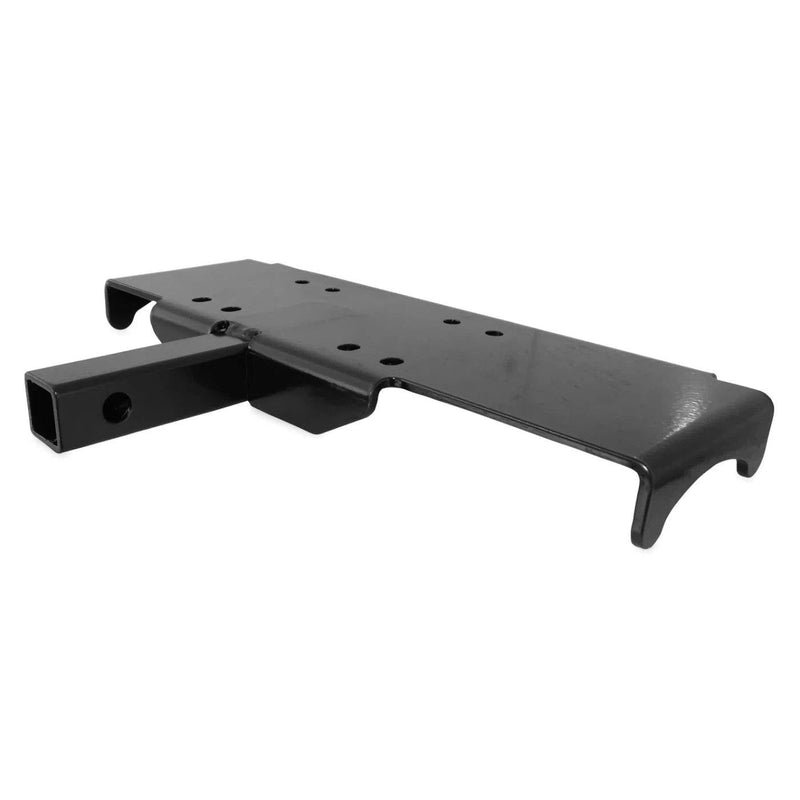

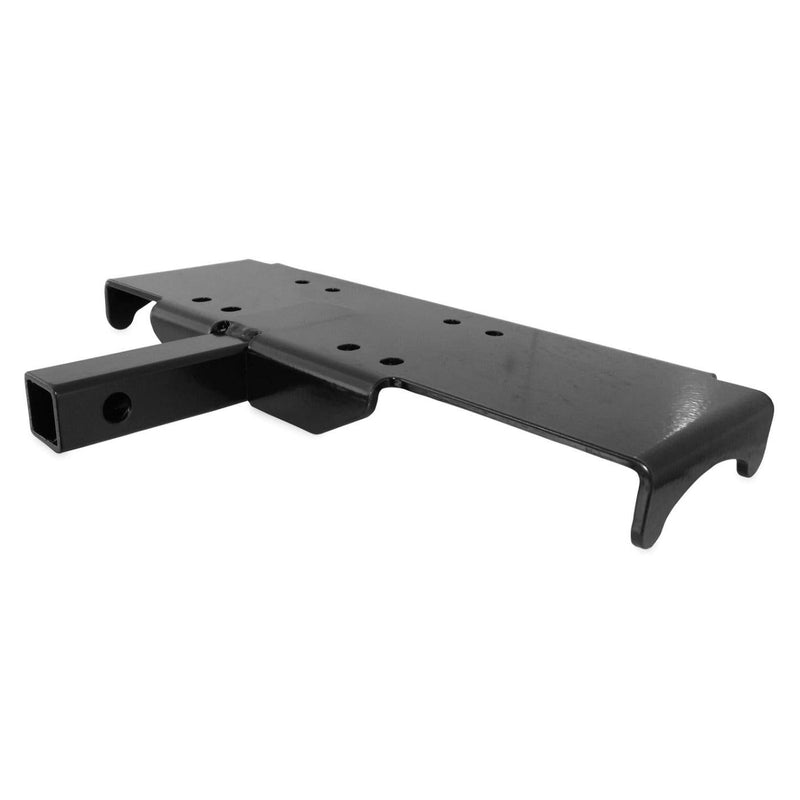

KFI Winch Mount with 1-1/4" Receiver- 100615

Brand New "KFI" 1-1/4" receiver winch wount for the following winches:

Note: With some winches the motor may be on the opposite side. This will require the rotation of the winch and the cable will need to be pulled all of the way out and then respooled in the opposite direction. Just make sure that your cable comes out between spool and the mounting plate when completed. This will also require you to reverse the wiring on the winch. With some winches you may need to remove or reverse the backing plate.

• KFI: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35
• KFI: AS-50
• WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce
• WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
• WARN:AXON 35 / AXON 35-S / AXON 45RC
• WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN:Vantage 2000-3000lbs / Provantage 2500-3500lbs
• RAMSEY : ATV2500 / ATV3000
• SUPERWINCH : Terra25 / Terra35 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV
• MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
• MASTER LOCK :1500lbs #2955AT
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
• CYCLE COUNTRY :Work Power 1500 and 2500 / Powermax 2500, 3500
• BADLAND: 2-Hole Winches
• BADLAND: Standard Winches
• CHAMPION : 2-Hole Winches
• CHAMPION : Standard Winches
• SMITTYBILT :XRC 2.0
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  • Listed models come with incorrect ATV roller fairleads.
• SMITTYBILT :XRC 3.0 / XRC 4.0
• XGEAR: X3000 / X4000
  • 4-Hole Standard (3.00" x 4.875" bolt pattern)
• KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C
• KEEPER CORP. TRAKKER :KT2000
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
• VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Standard ONLY)
  • 4-Hole Standard 3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
• Traveller:1078088 / 1078302
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
• Possibly many others with the below standard mounting patterns, call to confirm.
  • 4-Hole Standard (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
  • 2-Hole (3.10" with rollers that are 4.875" bolt pattern)

Specifications:

• 100% MADE IN USA.
• Constructed of 3/16" steel.
• Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder coated black for supreme durability.
• Very easy to install.
• Satisfaction guaranteed.
• Roller fairlead, winch, and fairlead bracket not included.
