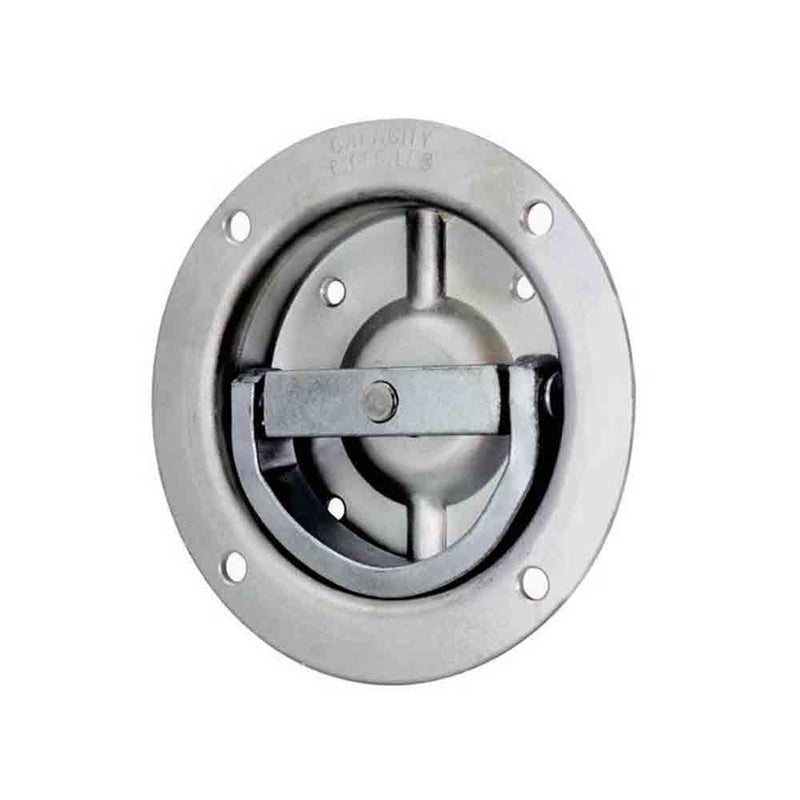

This heavy duty tie down ring features a recessed mount design. The outside diameter is 6.11". Four mounting holes form a 5.38" bolt circle. Unit is 1.08" deep. See picture 2 for more dimensions. Zinc plated to resist corrosion. Rated 2,000 pounds working load limit.
- Per federal D.O.T. requirements, working load limit is 1/3 of the rated capacity
- Recessed tie down rings pivot up when in use and down into pan for storage
- Tie down pans are designed to mount flush to mounting surface making them ideal for trailers along with other applications
- 360 degree rotating D-rings make for a versatile anchor point that rotates, allowing for anchoring a load in any direction
- Zinc plated for corrosion resistance
- Breaking load capacity of 6,000 lbs., working load limit of 2,000 lbs.
- Backing plate and mounting hardware sold separately
