RMStator 200 W Stator And Regulator Rectifier, CDI Box, Ignition Coil and Flywheel Puller Kit

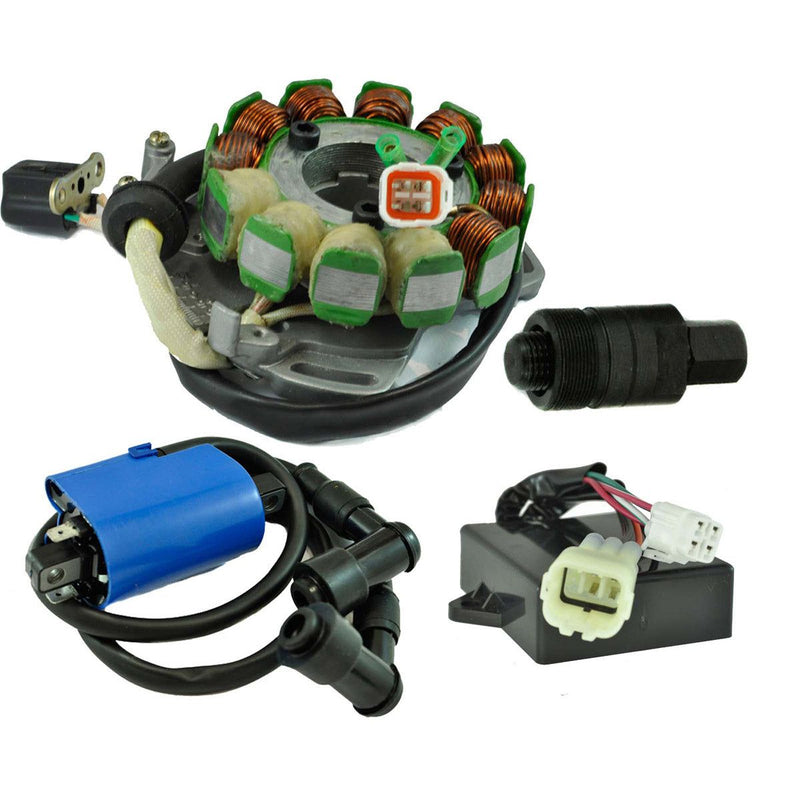

Brand New Kit HO Stator + Regulator Rectifier+ Peak RPM CDI Box + Flywheel Puller + External Ignition Coil
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

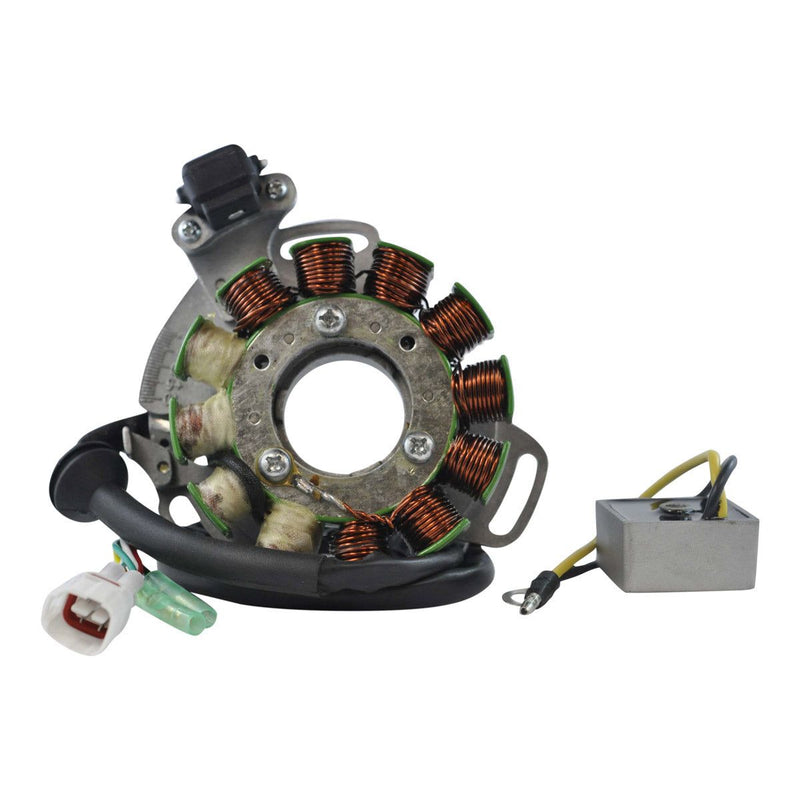

High output stator 200 watts- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included

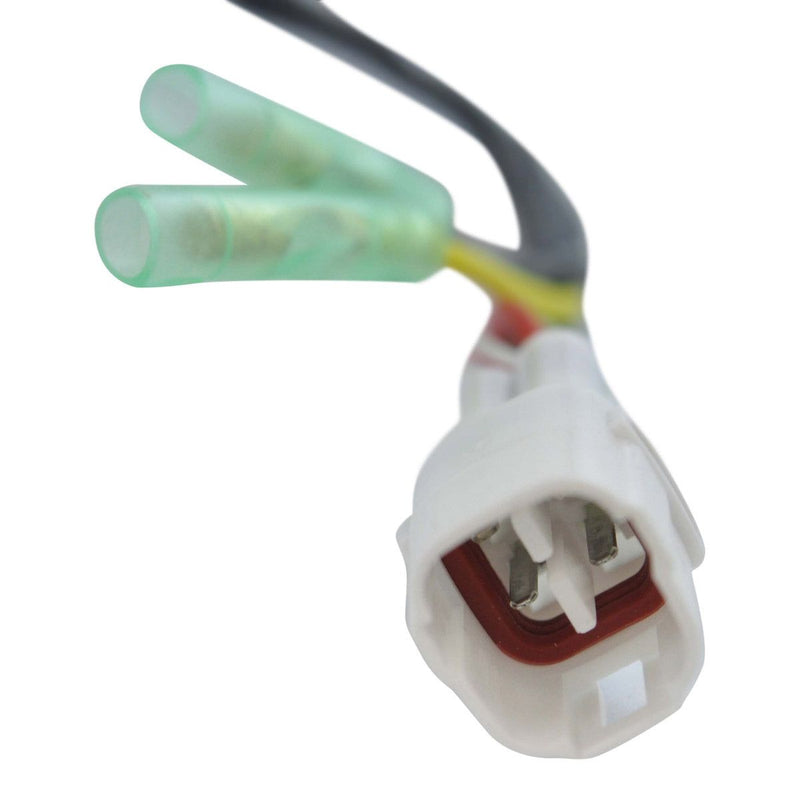

- Connector included
- Rubber grommet included
- Adjustable timing plate to advance and retard up to 10 degrees included
- 12 Volts regulator used by Baja winners
- For use with all standard halogen and quartz lights
- Precise voltage control, eliminates light burnout
- Reduce flickering and dimming
- Simple installation
- Works with all other OEM parts
- Rated at 225 watts
- Our PeakRPM CDI Box provides the optimal output for your ride
- Higher grade of electronic components
- The Quality exceeds the OEM equipment

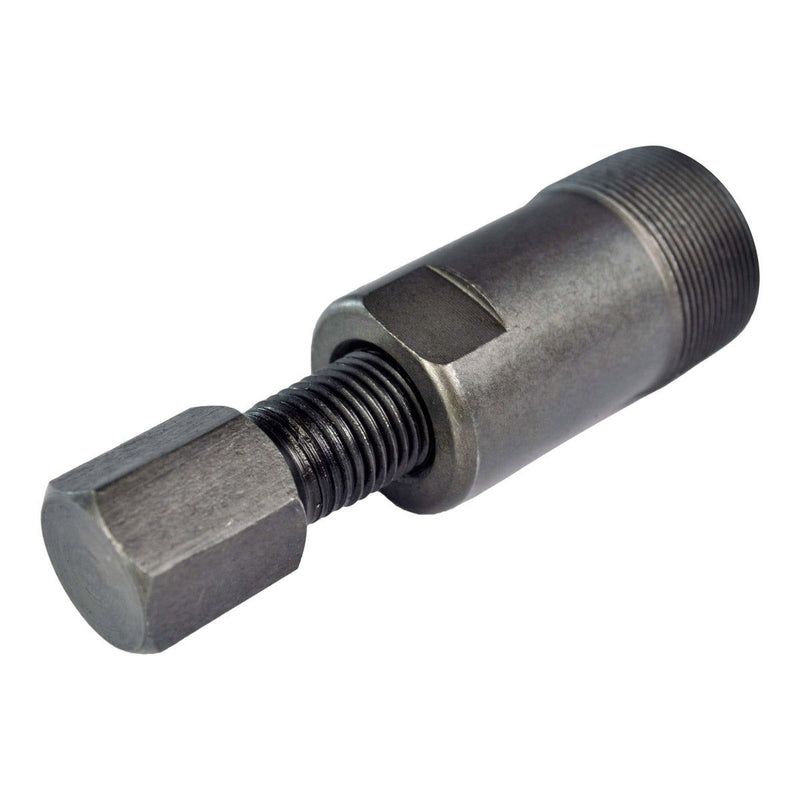

- 27 MM x 1.0 Left hand male
Please note : For solid tip spark plugs, you may re-use your original spark plug caps.
- Highest grade of lamination materials
- The Quality exceeds the OEM equipment

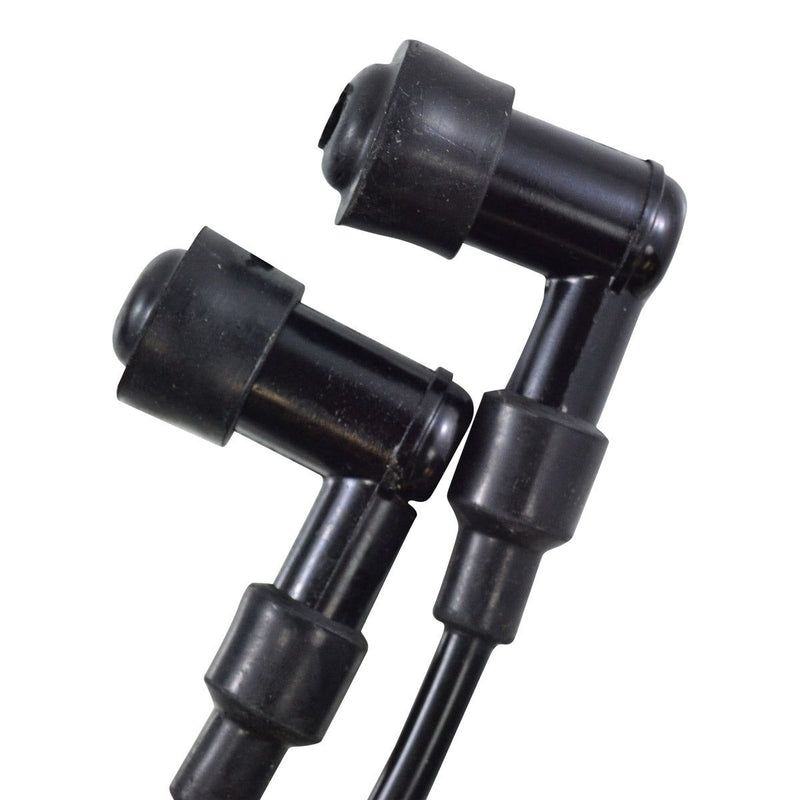

- Spark plug cap(s) included
If your old parts are defective, RM Stator offer replacements parts of high qualities at a fraction of the cost of genuine parts.
Technical Data
Stator:
Interior diameter : 34 mm
Exterior diameter : 103 mm
Thickness : 27 mm
Length of wires stator to grommet : 60 mm
Length of wires grommet to plug : 520 mm
Length of pickup coil's wire to grommet : 80 mm
Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6
Wire to wire resistance :
Alternator : Yellow to Black = 0.4 ohms +/-20%
Pickup : White/Green to White/Red = 115 ohms +/-20%
Source : Green to Red = 12 ohms +/-20%

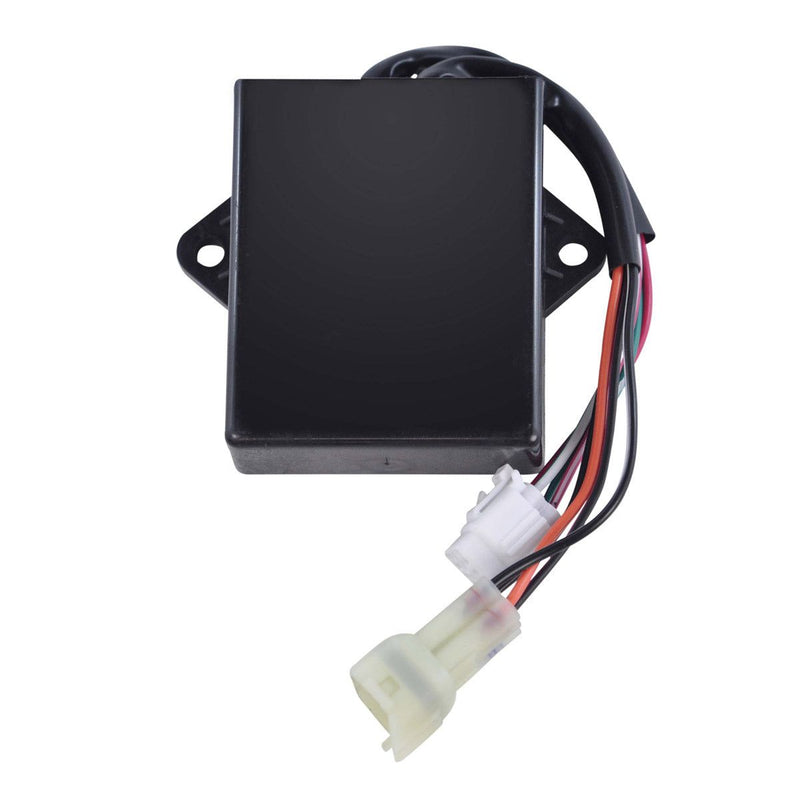

CDI Box
Height: 71 mm
Length: 87 mm
Width: 26 mm
Fixation holes center to center: 85 mm
Other specifications:

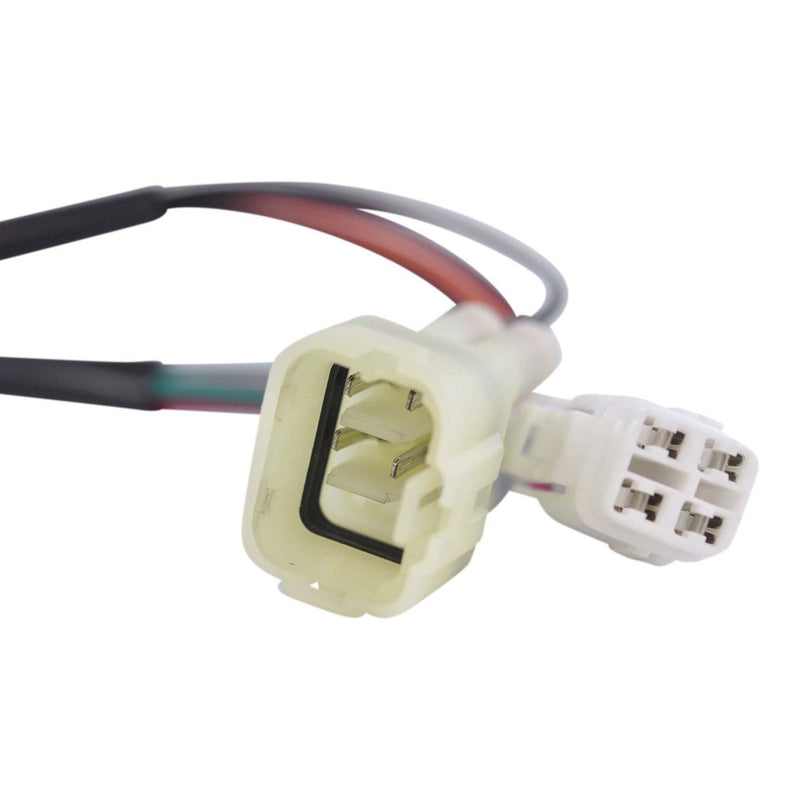

Number of plugs: 2
Number of pins: 8

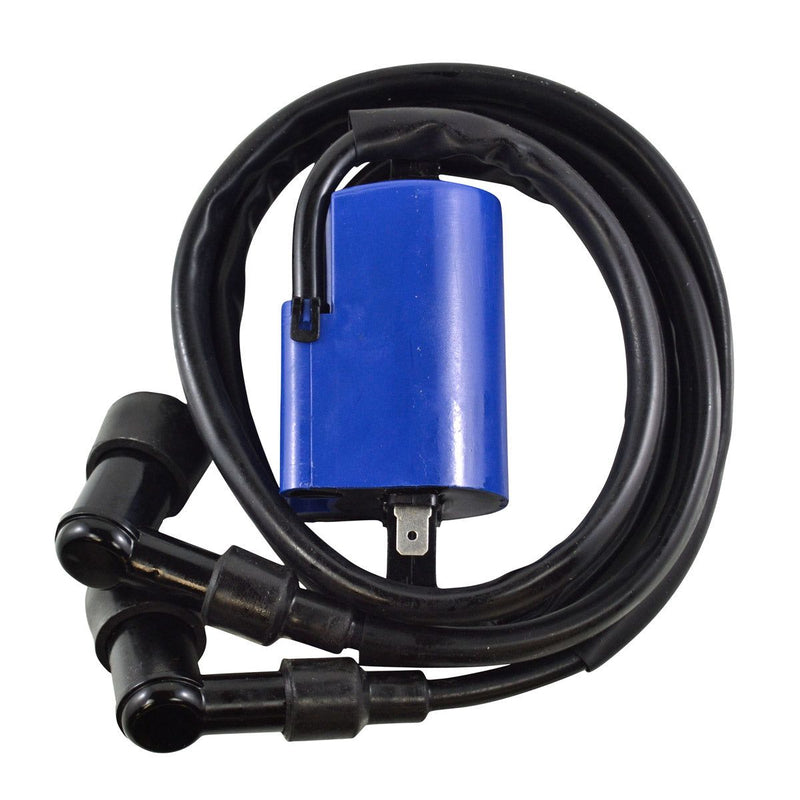

External Ignition Coil
Fixation holes center to center: 90 mm
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM22856
Fitment:
- 1997-2006 Yamaha Banshee 350 YFZ350
Note: Image is for reference only, actual product may vary slightly.
