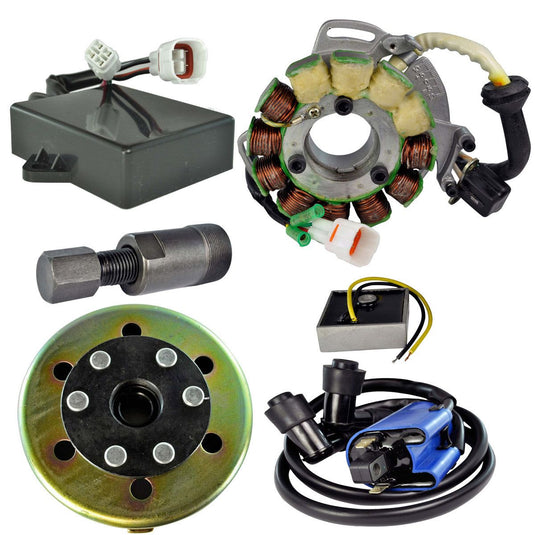

RMStator 200 W Stator And Regulator Rectifier, Peak RPM CDI Box, Ignition Coil and Flywheel with Puller
Brand New Kit Stator + PeakRPM CDI Box + External Ignition Coil + Flywheel + Puller
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
High Output Stator- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- Adjustable timing plate to advance and retard up to 10 degrees included
- Our PeakRPM CDI Box provides the optimal output for your ride
- Higher grade of electronic components
- Highest grade of lamination materials
- Spark plug cap(s) included
RMSTATOR is offering a new replacement flywheel with stronger magnetsfor your Banshee. This flywheel can be used as a direct replacement to the OEM.
We suggest combining it to our 100 or 200 watt stator as it will run the lights better in the lower rpm's.
Technical Data
Stator
Interior diameter : 103mm
Exterior diameter : 34mm
Thickness : 27mm
Length of wires stator to grommet : 60mm
Length of wires grommet to plug : 520mm
Length of pickup coil's wire to grommet : 80mm
Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6
Wire to wire resistance :
Alternator : Yellow to Black = 0.4ohms +/-20%
Pickup : White/Green to White/Red = 115ohms +/-20%
Source : Green to Red = 12ohms +/-20%
Dimensions AC Regulator:
Height: 20 mm
Length: 45 mm
Width: 45 mm
Other specifications:
Number of terminals: 2
Wires length: 130 mm
Height: 25mm
Length: 87mm
Width: 71mm
Fixation holes center to center: 85mm
Wires length: 140mm
Other specifications:
Number of plugs: 2
Number of pins: 8
External Ignition coil
Distance between fixation holes: 90mm
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM22857
Fitment:
- 1995-1996 Yamaha Banshee 350 YFZ350
Note: Image is for reference only, actual product may vary slightly.
