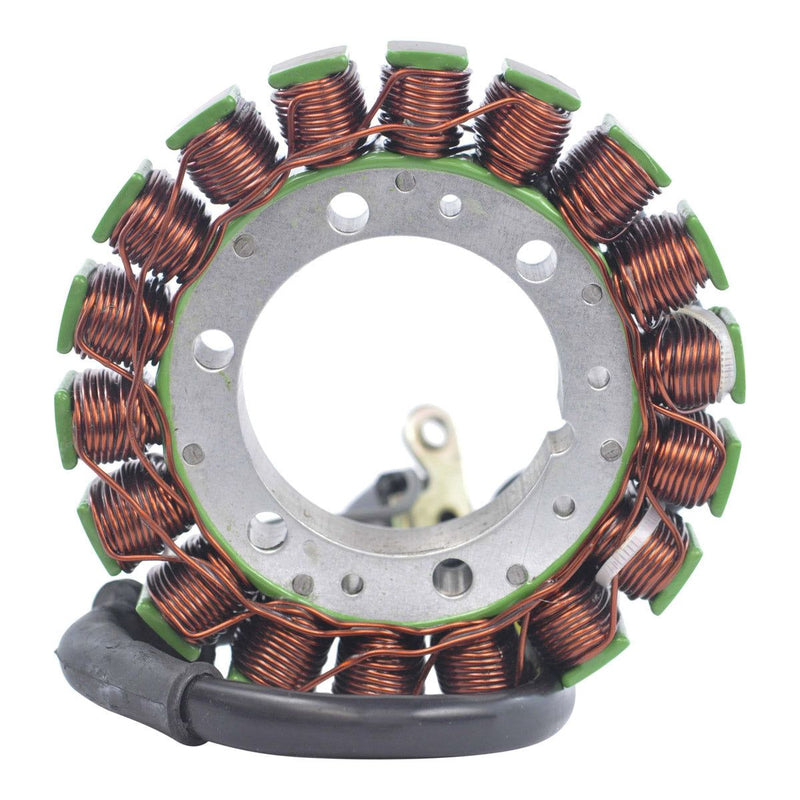

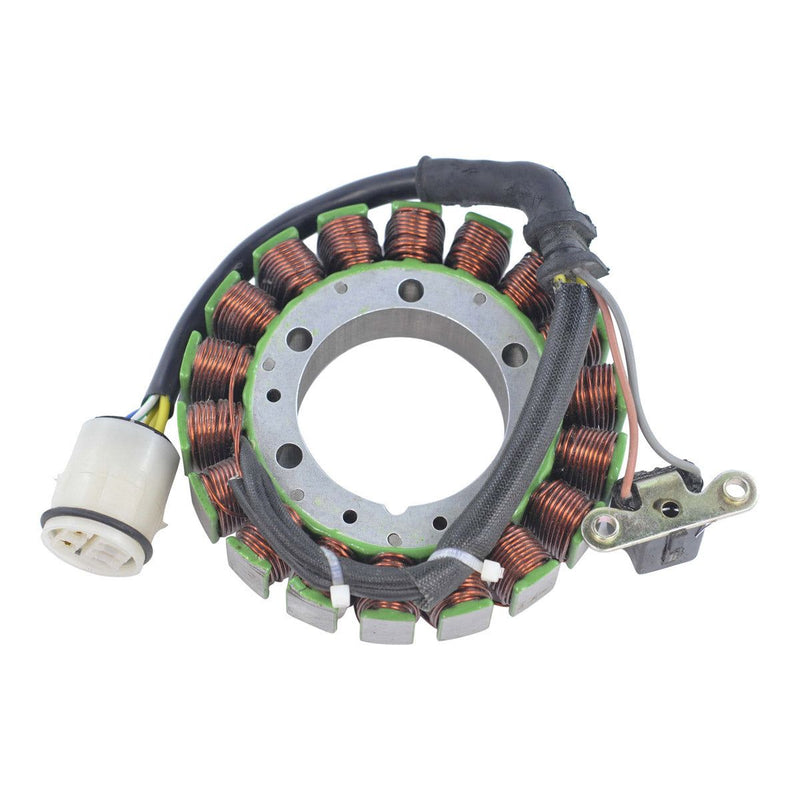

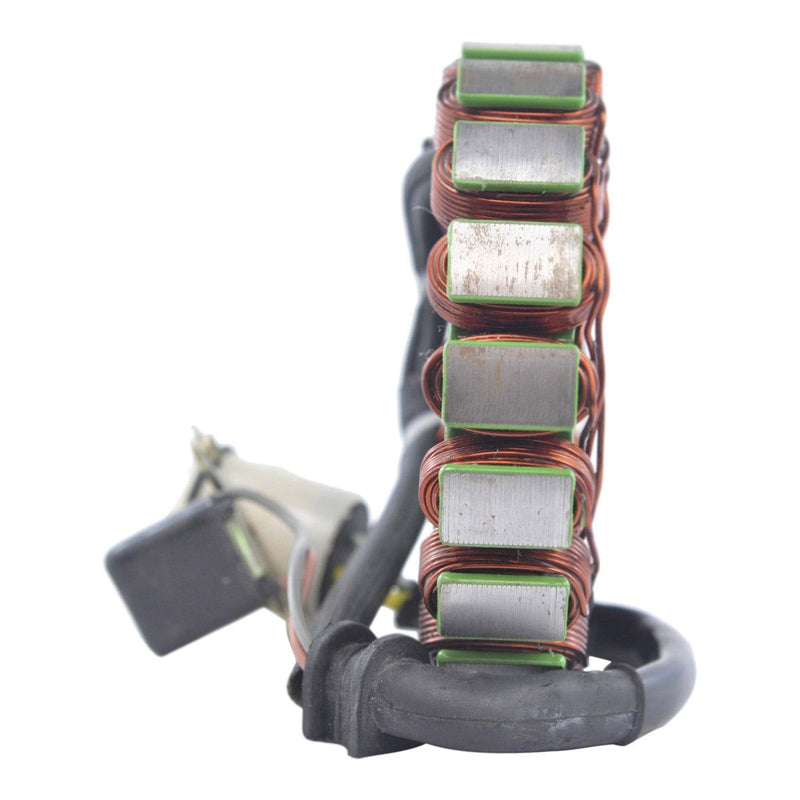

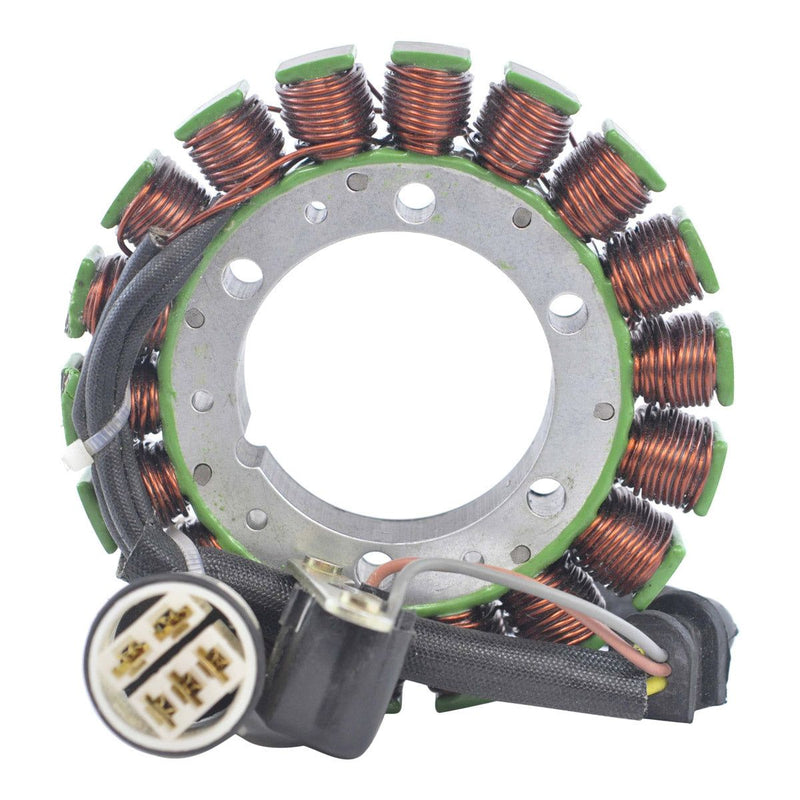

RMStator Alternator Stator RM01103

RMStator Alternator Stator RM01103

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included

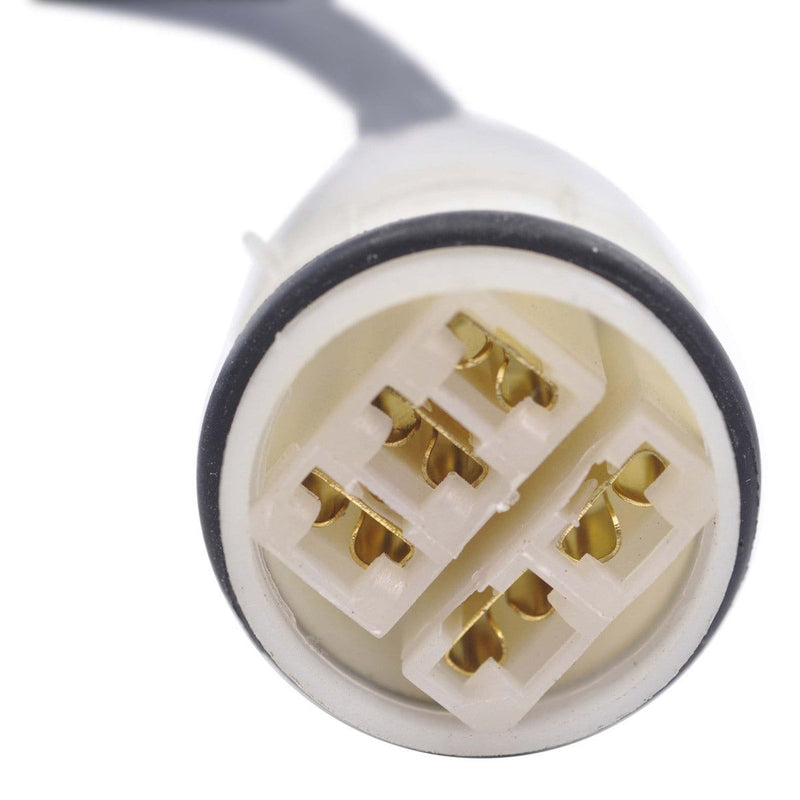

• Connector included
• Rubber grommet included
• All product shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

Technical Data

Dimensions:
Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 20 mm
Length of wires stator to grommet: : 40 mm
Length of wires grommet to plug : 210 mm
Length of pickup coil's wire to grommet : 50 mm

Other specifications:

Number of wires : 5
Number of plugs : 1
Number of pins : 5

Wire to wire resistance:
Alternator : Yellow between each Yellow = 0.4 ohms +/-20%
Pickup : Blue/Yellow to White/Green = 196 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01103

Fitment:

• 2006-2014 Honda Rincon 680 TRX680FA

Note: Image is for reference only, actual product may vary slightly.
