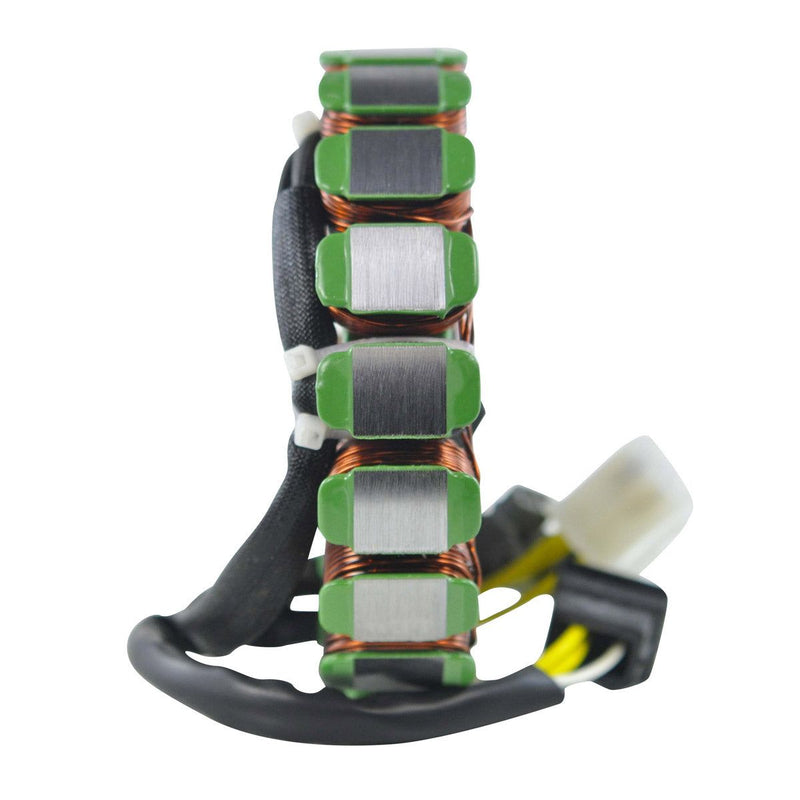

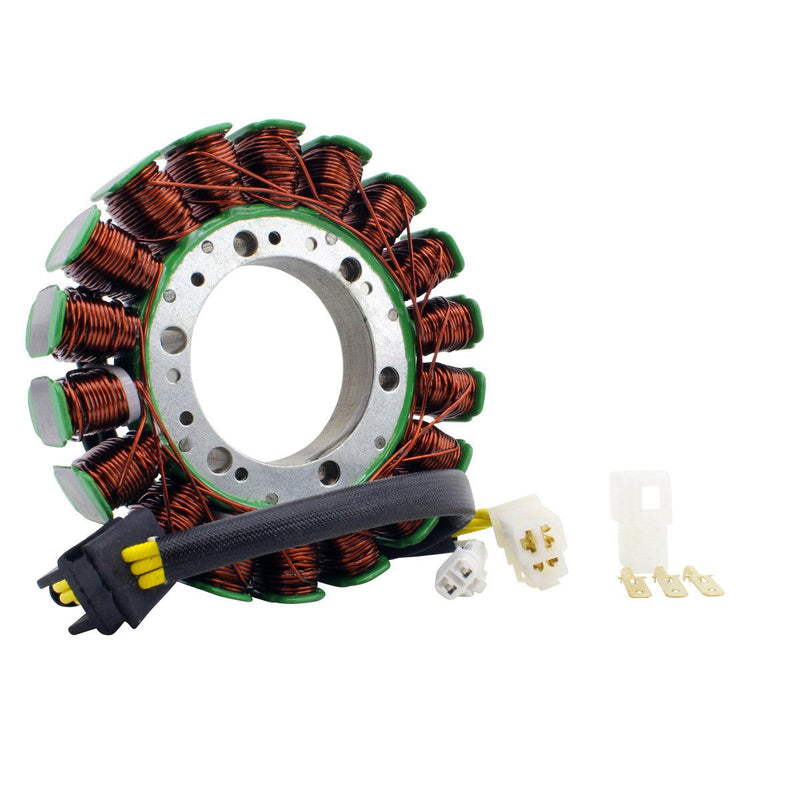

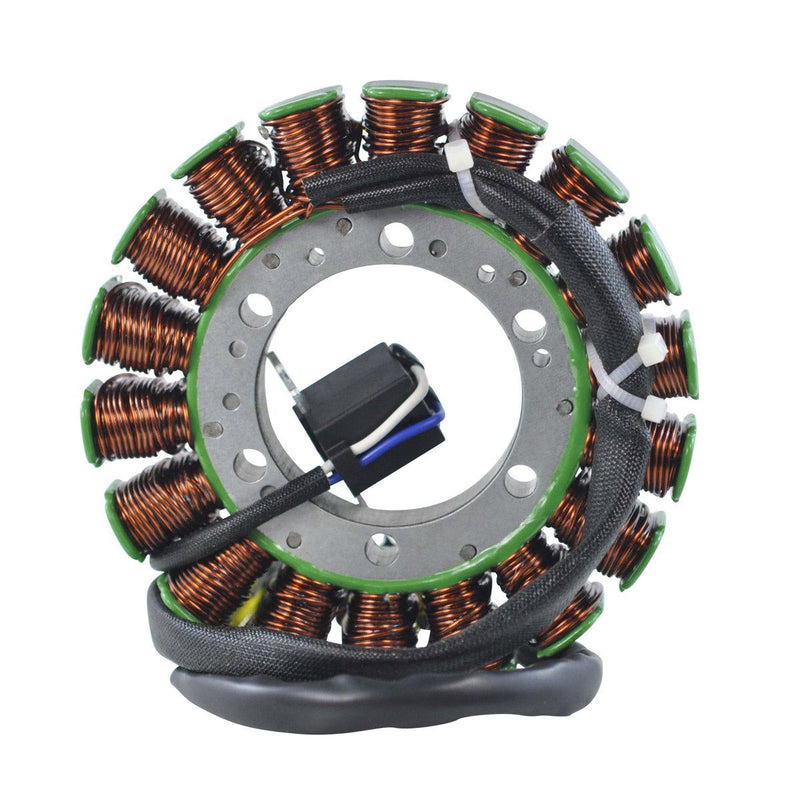

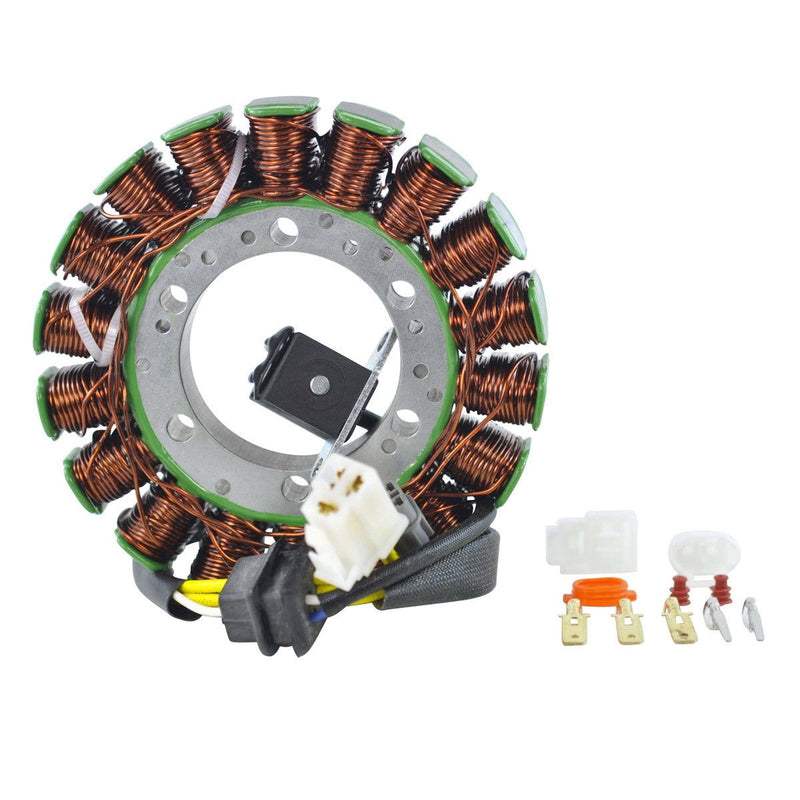

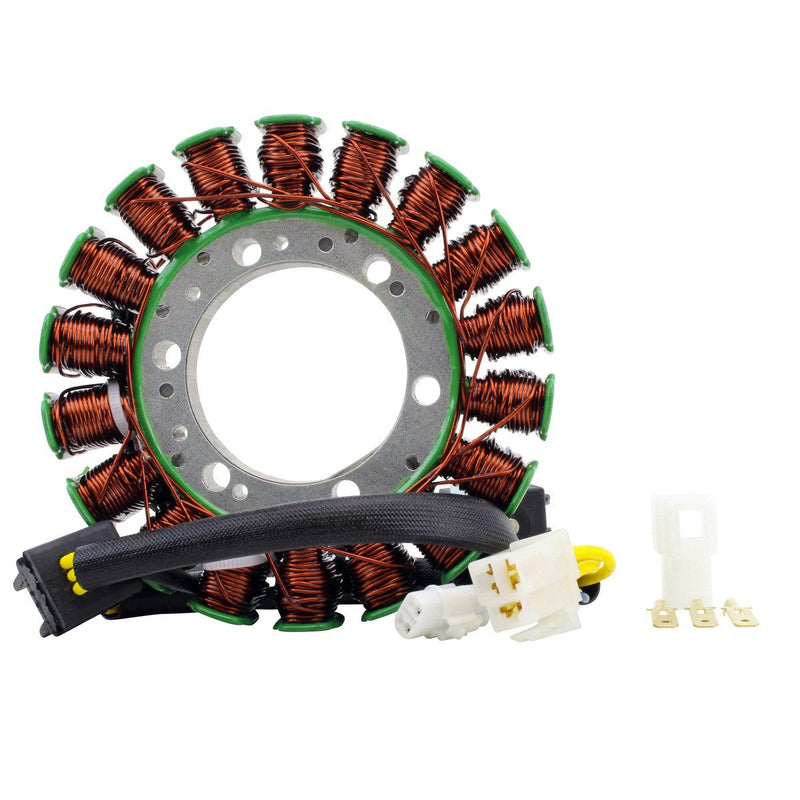

RMStator Generator Stator RM01358
Brand new aftermarket generator stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included

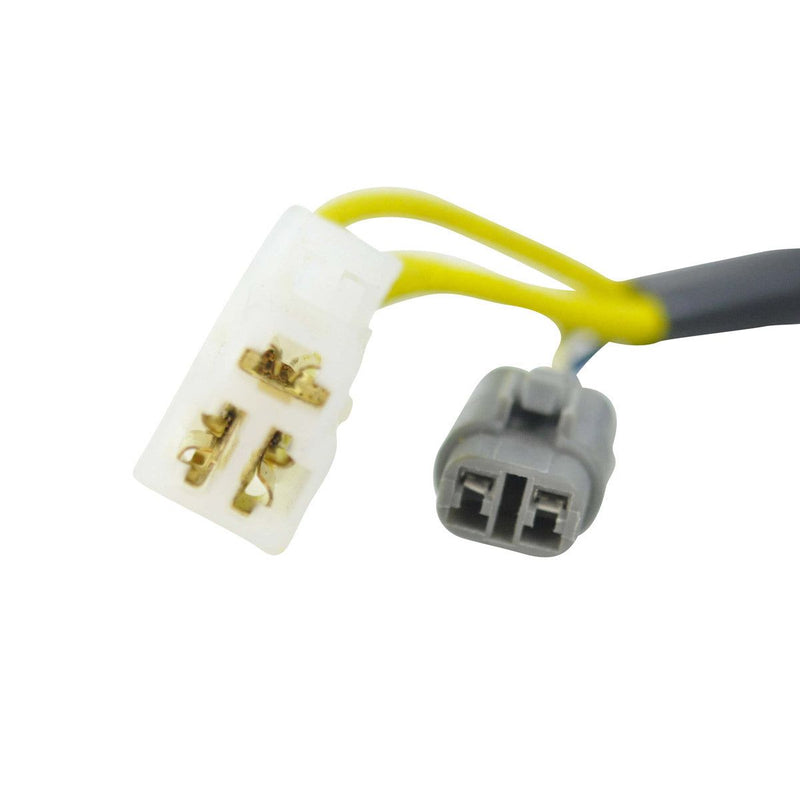

- Connector included
- Rubber grommet included
- All products shipped are tested

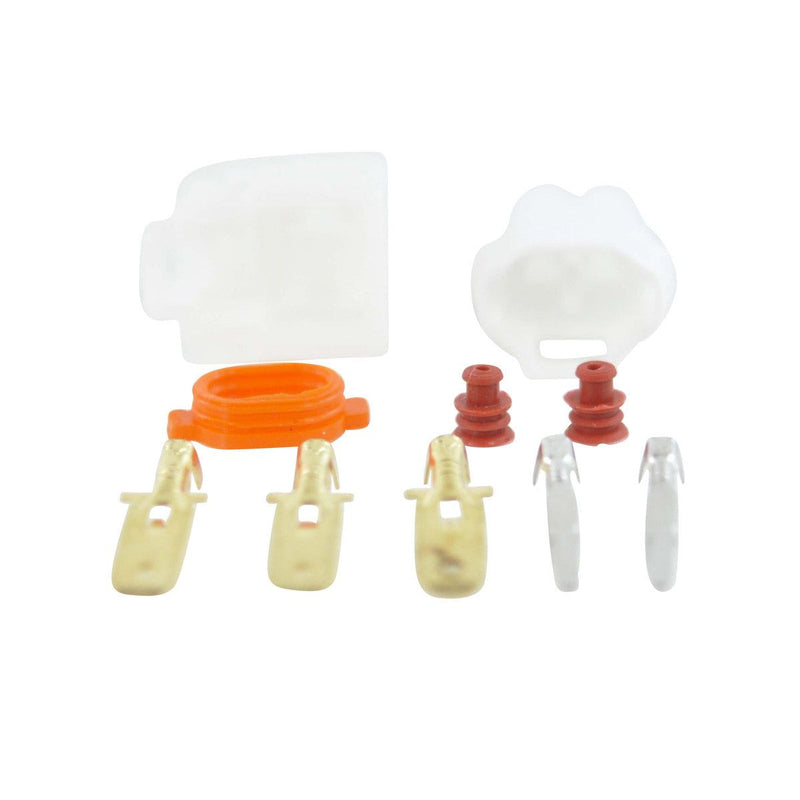

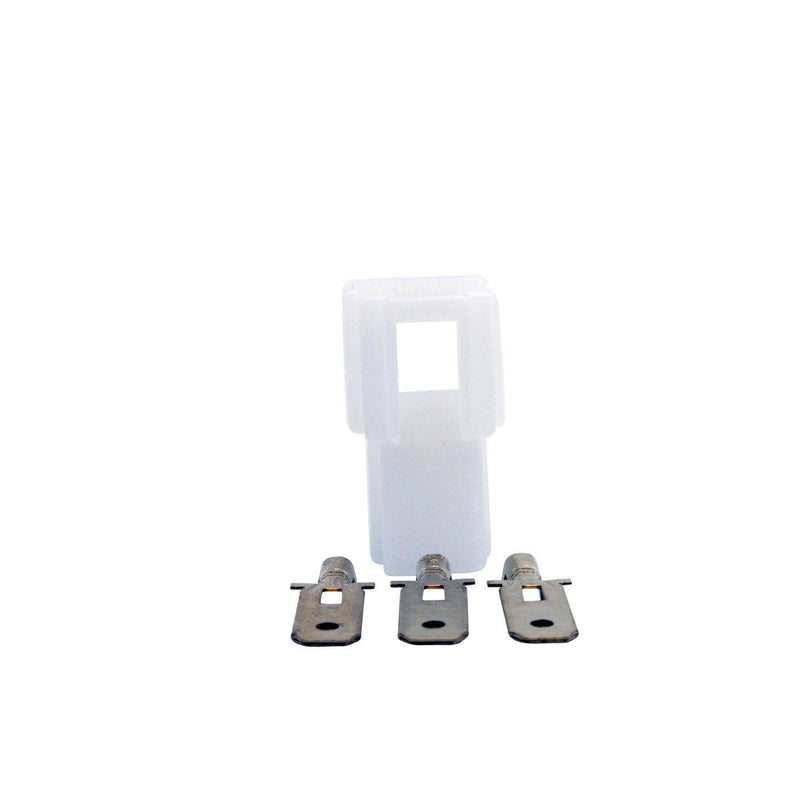

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 53mm
Exterior diameter : 125mm
Thickness : 20mm
Length of wires stator to grommet : 155mm
Length of wires grommet to plug : 435mm & 475mm
Length of pickup coil's wire to grommet : 175mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4 ohms +/-20%
Pickup : Blue to White = 208 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01358
Fitment:
- 2006-2008 Arctic Cat 700 4X4
- 2008 Arctic Cat 700 4x4 TRV
- 2005-2007 Suzuki King Quad 700 LTA700X 4x4
- 2008-2009 Suzuki King Quad 750 LTA750X 4x4 AXi
- 2011-2018 Suzuki King Quad 750 LTA750X 4x4 AXi
Note: Image is for reference only, actual product may vary slightly.
