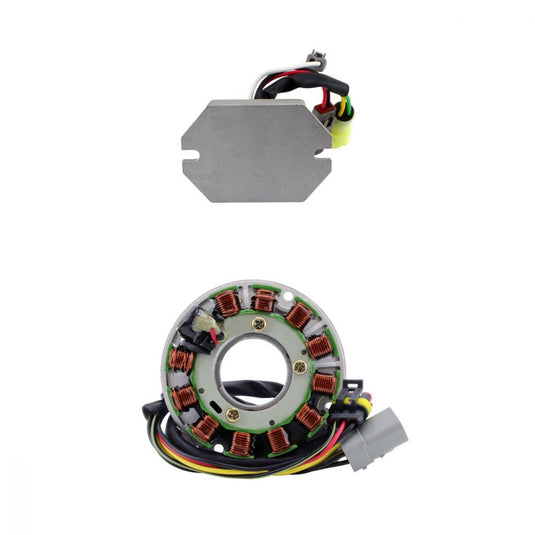

RMStator Stator Regulator Rectifier Kit RMS900-108222
Brand new aftermarket stator + regulator rectifier
- Direct replacements to your original units
- Plug-and-play, direct fit, easy installation
- Connectors included
- All products shipped are tested
*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Stator :- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Back Plate included
- No assembly required
- Higher grade of electric components.
- The quality exceeds the OEM equipment
Technical Data
Stator :
Dimensions :
Interior diameter: 43 mm
Exterior diameter: 110 mm
Thickness: 32 mm
Length of wires stator to plug: 570 mm
Other specifications :
Number of wires: 7
Number of plugs: 2
Number of pins: 7
Wire to wire resistance :
Alternator: Between each Yellow = 0.4 ohms +/-20%
Alternator: Yellow to Ground = 0.L on display
Source: Red to Black = 8 ohms +/-20%
Dimensions :
Width: 66 mm
Length: 66 mm
Height: 27 mm
Fixation holes center to center: 84 mm
Wires Length: 130 mm & 110 mm
Other specifications :
Number of plugs: 3
Number of pins: 6
Number of wires: 6
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 50A/500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS900-108222
Fitment:
- 2001-2004 Lynx Forest
- 2001-2004 Ski-Doo Skandic 440F LT Carb
Note: Image is for reference only, actual product may vary slightly.
