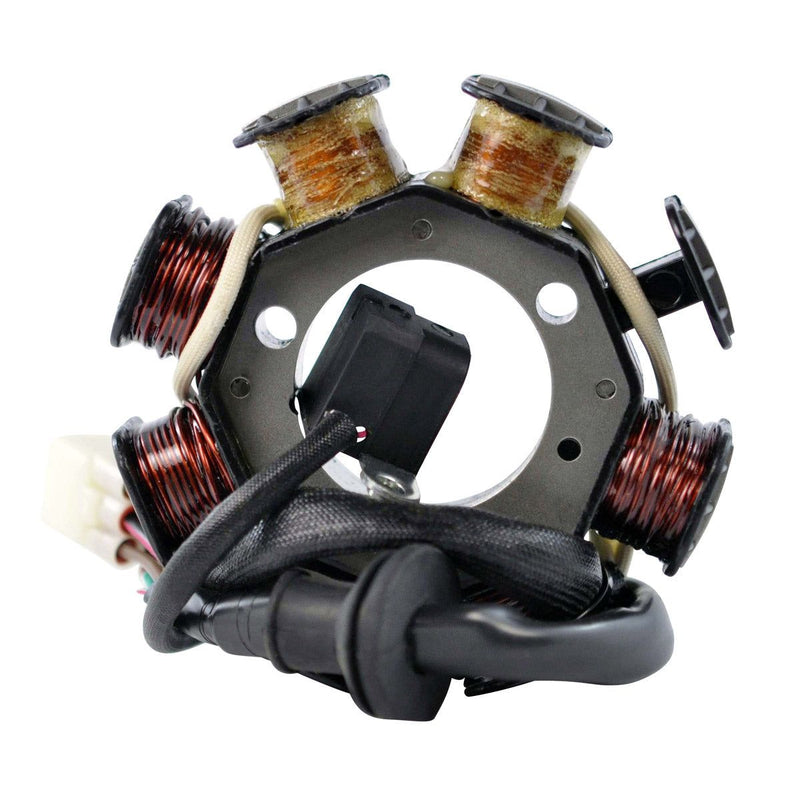

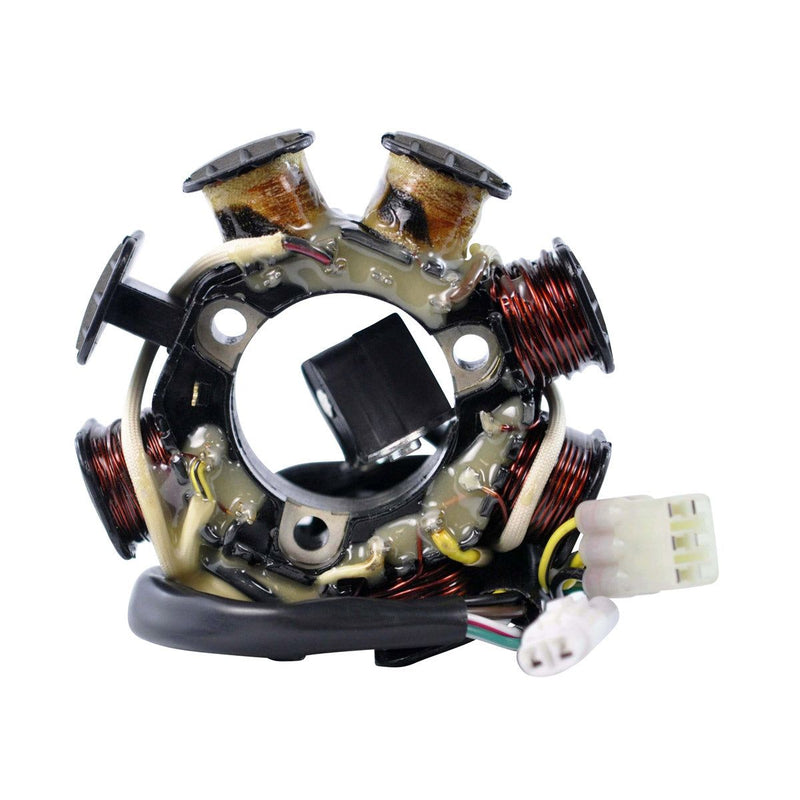

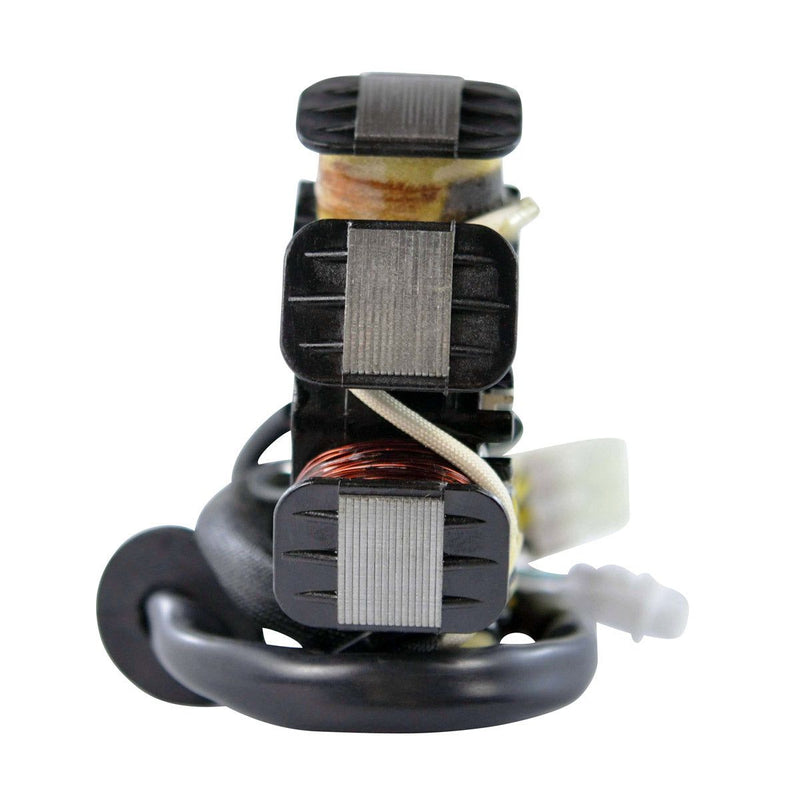

RMStator Stator RM01095
Brand new stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included

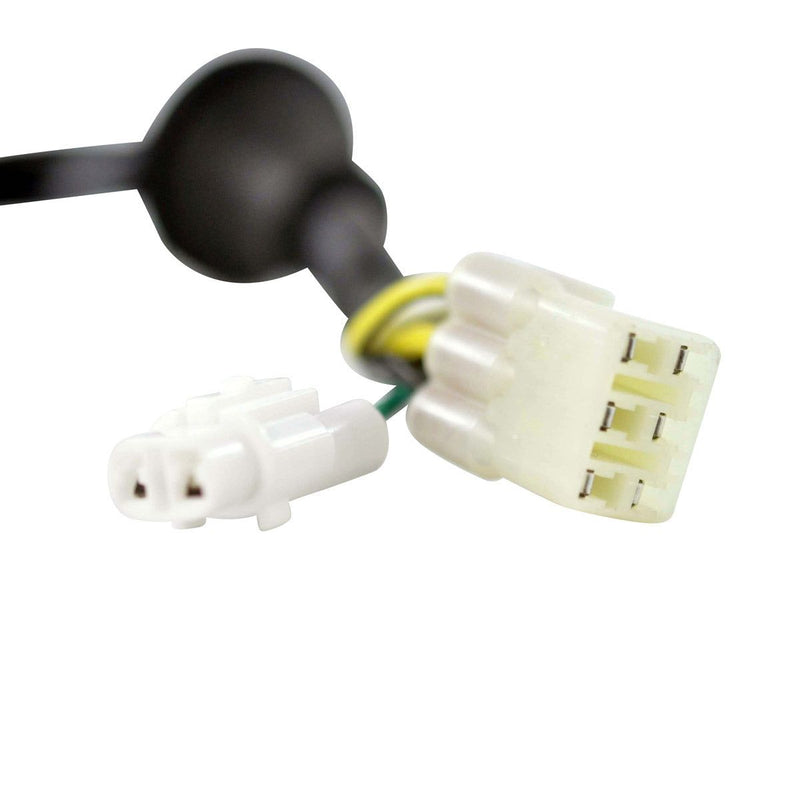

- Connector included
- Rubber grommet included
- All product shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 41 mm
Exterior diameter : 103 mm
Thickness : 13 mm
Length of wires stator to grommet : 85 mm
Length of wires grommet to plug : 200 mm
Length of pickup coil's wire to grommet : 100 mm
Other specifications :
Number of wires : 8
Number of plugs : 2
Number of pins : 8
Wire to wire resistance :
Alternator : Yellow/Brown to Yellow = 0.4 ohms +/-20%
Pickup : White/Green to White/Red = 200 ohms +/-20%
Source : Red/Black to Brown = 320 ohms +/-20%
Other : Black to White = 0.3 ohms +/-20% (coil is grounded)
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01095
Fitment:
- 2000-2001 Yamaha SX500R
- 1997-2001 Yamaha Venture 500 VT500
- 1997-2001 Yamaha VMAX 500 VX500
- 1997-1998 Yamaha VMAX 600 VX600
- 1997-1998 Yamaha VMAX 600 SX VX600SX
Note: Image is for reference only, actual product may vary slightly.
