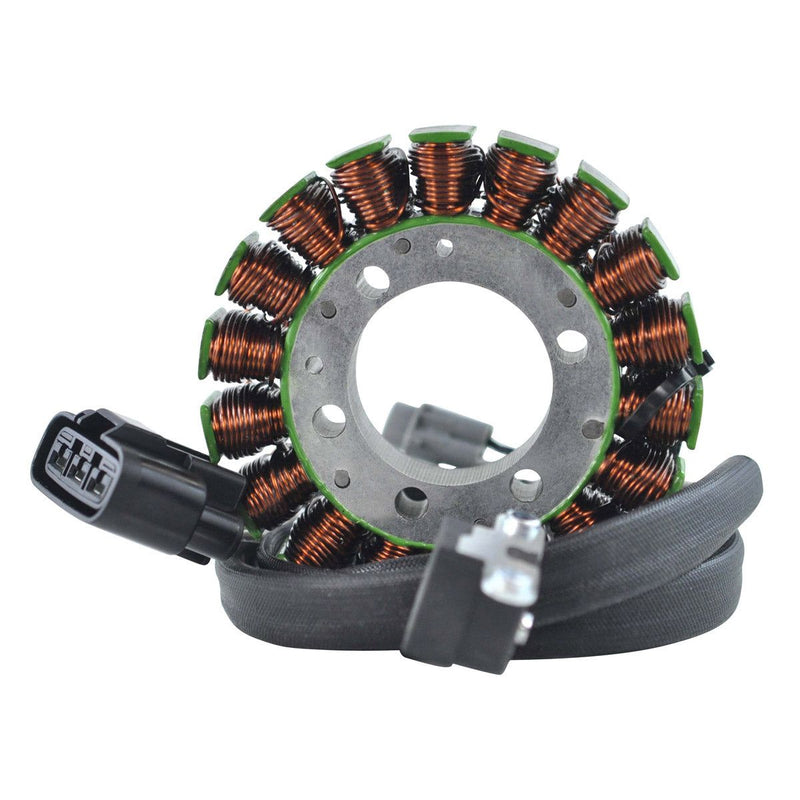

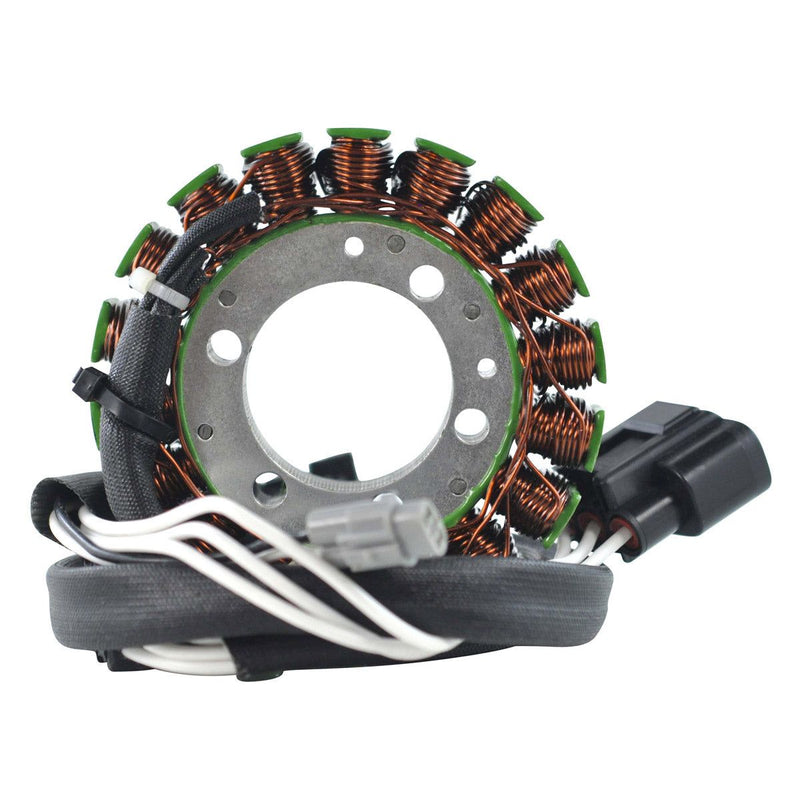

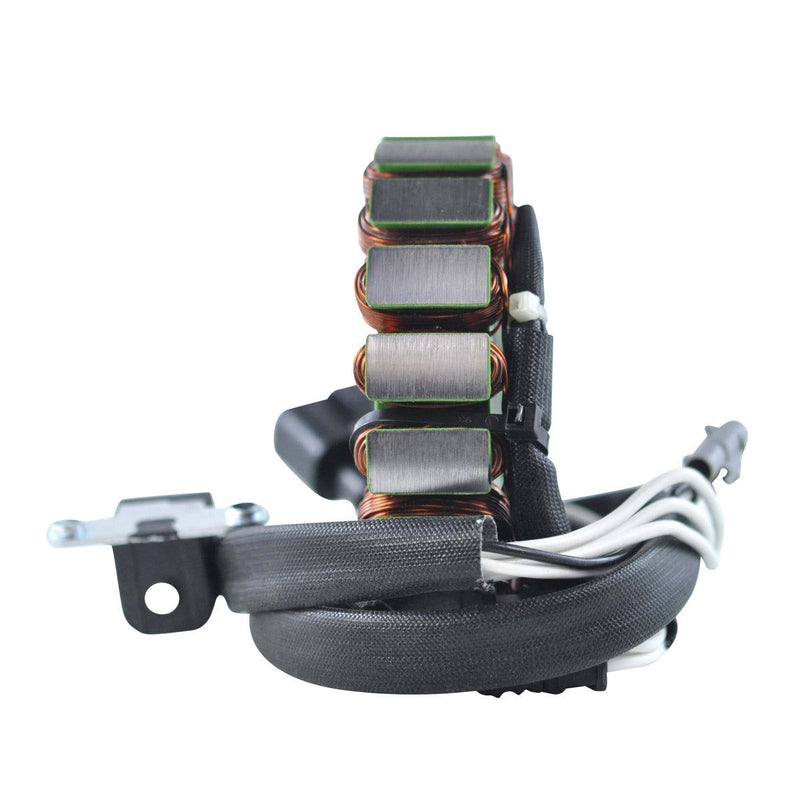

RMStator Stator RM01339
Brand new Stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials
- Highest grade of copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included

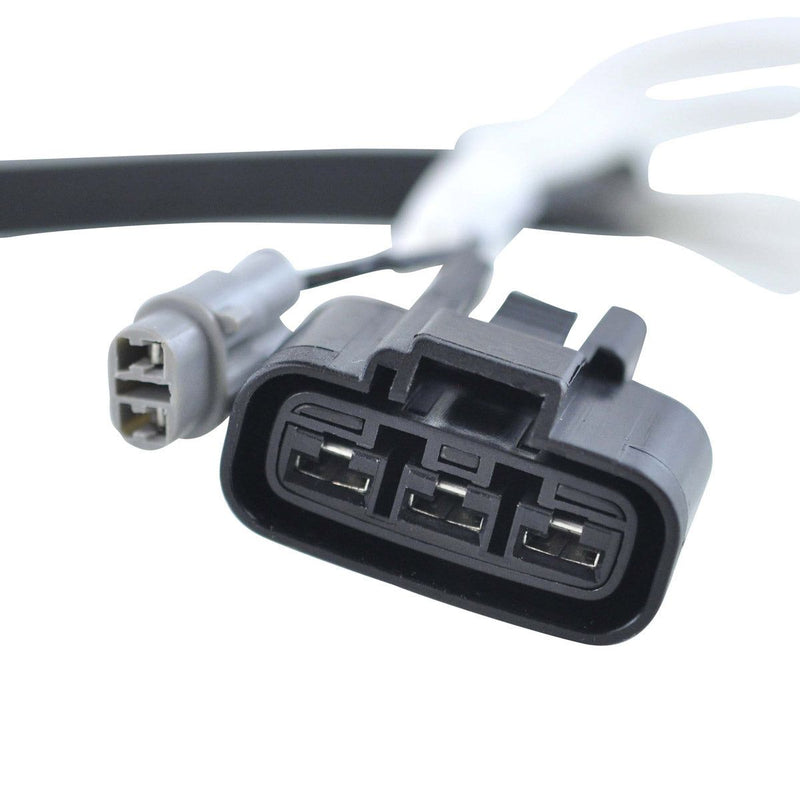

- Connectors included
- Rubber grommet included
- All product shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 103 mm
Thickness : 23 mm
Length of wires stator to grommet : 220 mm
Length of wires grommet to plug 1 : 640 mm
Length of wires grommet to plug 2 : 765 mm
Length of pickup coil's wire to grommet : 77 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : White Between Each White = 0.6 ohms +/-20%
Alternator : White To Ground = O.L. on Display
Pickup : Black To White = 185 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01339
Fitment:
- 2006-2007 Yamaha Nytro 1000
- 2006-2007 Yamaha Nytro ER RS90NR
- 2007-2018 Yamaha Phazer 500 PZ500
- 2005-2007 Yamaha RS Rage 1000
- 2005-2009 Yamaha RS Vector 1000
- 2005-2017 Yamaha RS Venture 1000
- 2007-2009 Yamaha RS Venture 1000 GT
- 2006-2015 Yamaha RS Viking Professional VK10
- 2007-2013 Yamaha Venture 500 VT500 Lite
- 2015-2018 Yamaha Venture 500 VT500 Lite
- 2013-2017 Yamaha Venture MP 500
Note: Image is for reference only, actual product may vary slightly.
