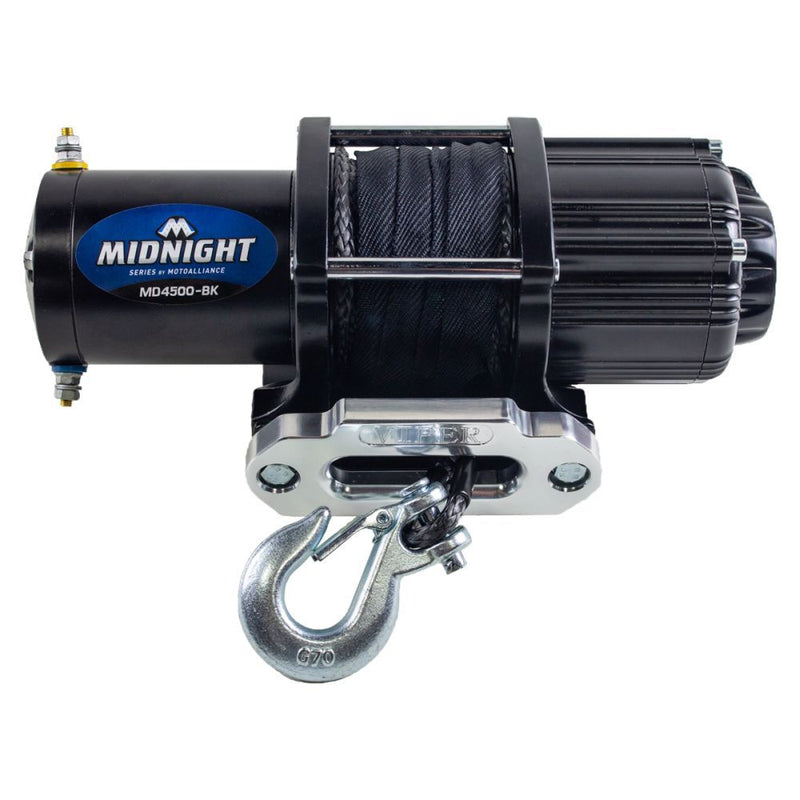

Viper Midnight UTV Winch Kit 4500 lb With 50 Feet Black Synthetic Rope With Mount
NOTES:
Kit includes all winch components and a vehicle specific mount
Winch Description

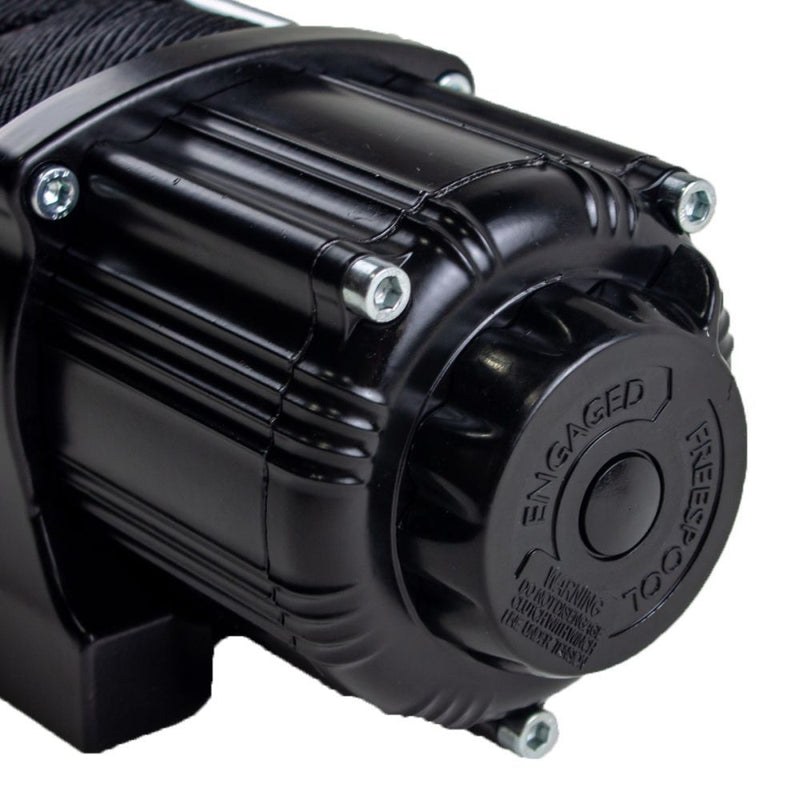

The VIPER Midnight 4,500lb Winch is a durable winch for ATVs, UTVs and Side by Sides. A great winch for snowplowing and mudding with ATV and UTVs, it has a sealed planetary metal gear train, a 1.8 horsepower permanent magnet motor, automatic brake, and stainless-steel hardware. Wireless remote switch, waterproof handle bar switch and synthetic rope are standard on this Midnight winch.
Important Safety Features
All VIPER winches contain safety features including mechanical and dynamic braking systems (automatically hold 100% of the winch capacity & reduce the chance of rope creep when power is applied) and a sealed solenoid.
Specs
- Cable - Dyneema

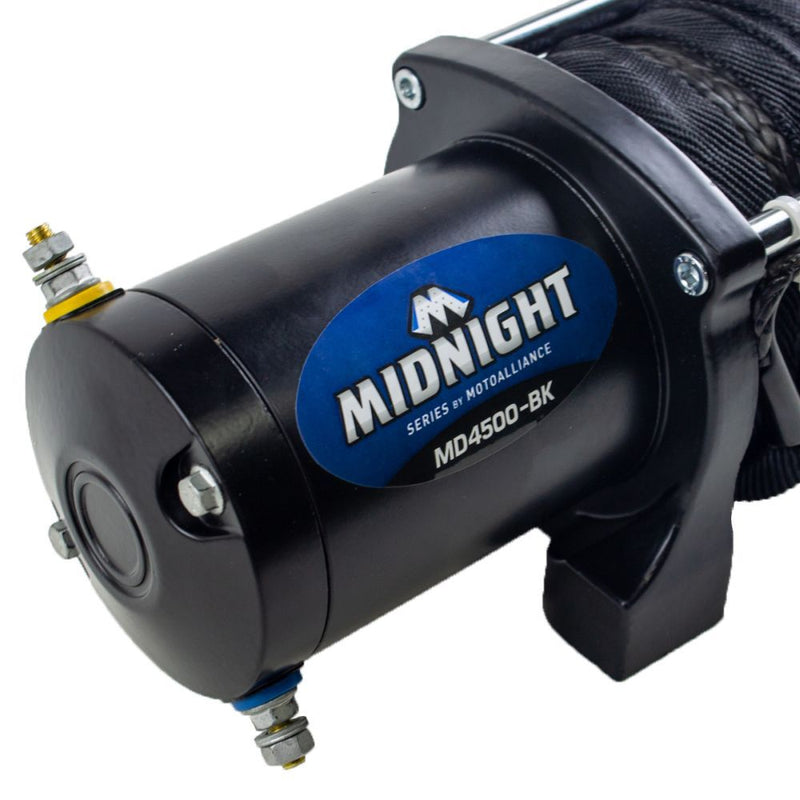

- Motor - 12V DC, Sealed 1.8HP permanent magnet
- Rated Line Pull - 4,500lbs (2041.47 kgs)
- Line Speed - 0 lbs - 31 Amps motor draw / 26 FPM (7.92 MPM)
- Line Speed - 4,500lbs - 308 Amps motor draw / 5 FPM (1.52 MPM)
- Gearing / Gear Ratio - 3-Stage planetary/153:1
- Brake - Automatic, 100% load holding
- Clutch - Cam Activated
- Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123.83mm)
- 1 Year Warranty (winch) / 6 month Warranty (rope)

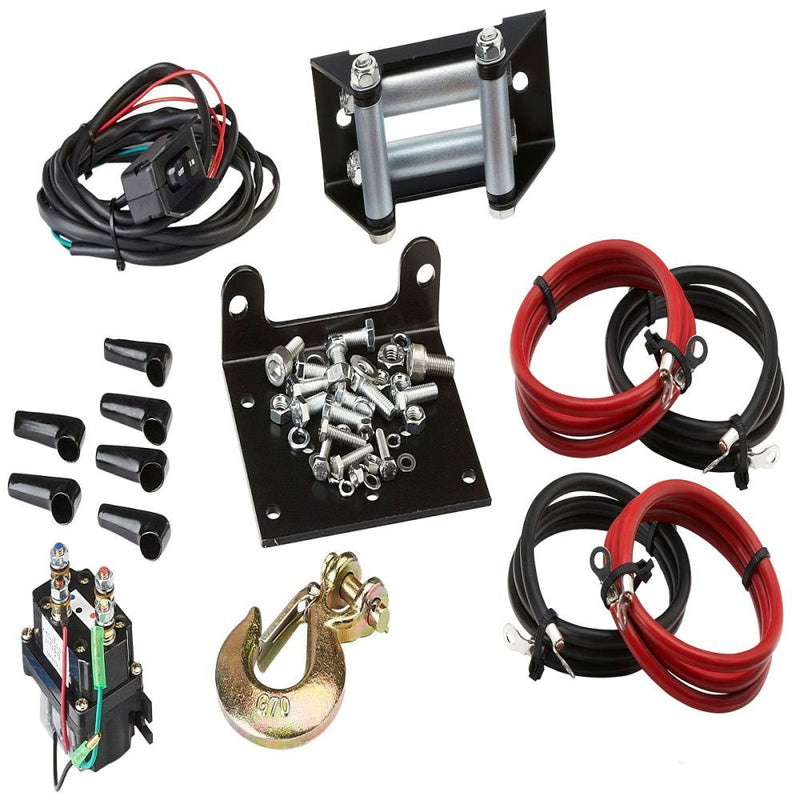

Kit Contents
- 50ft BLACK Synthetic Rope

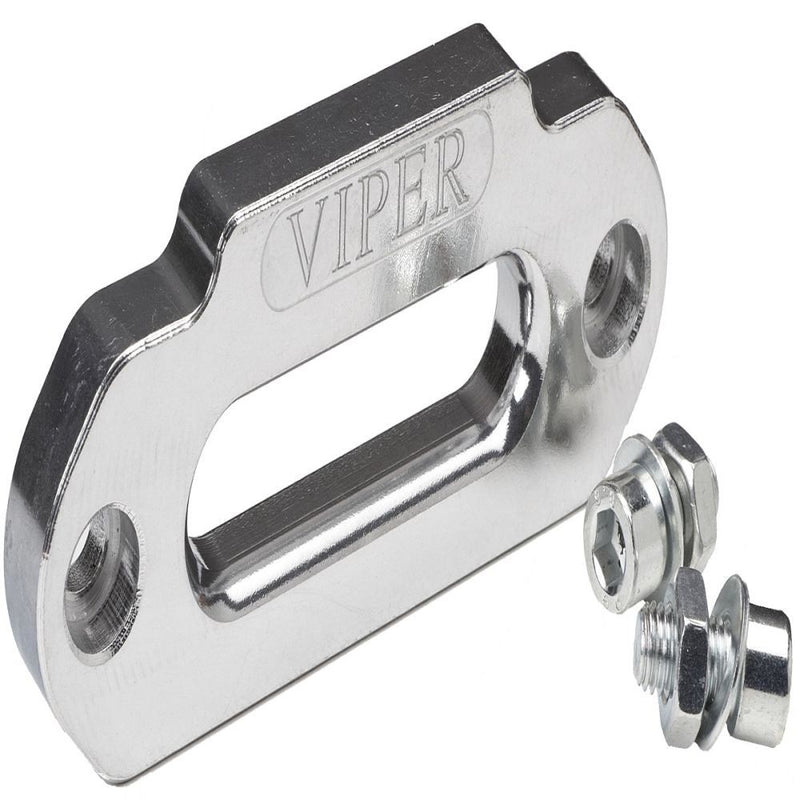

- Aluminum Hawse Fairlead
- Contact/Solenoid

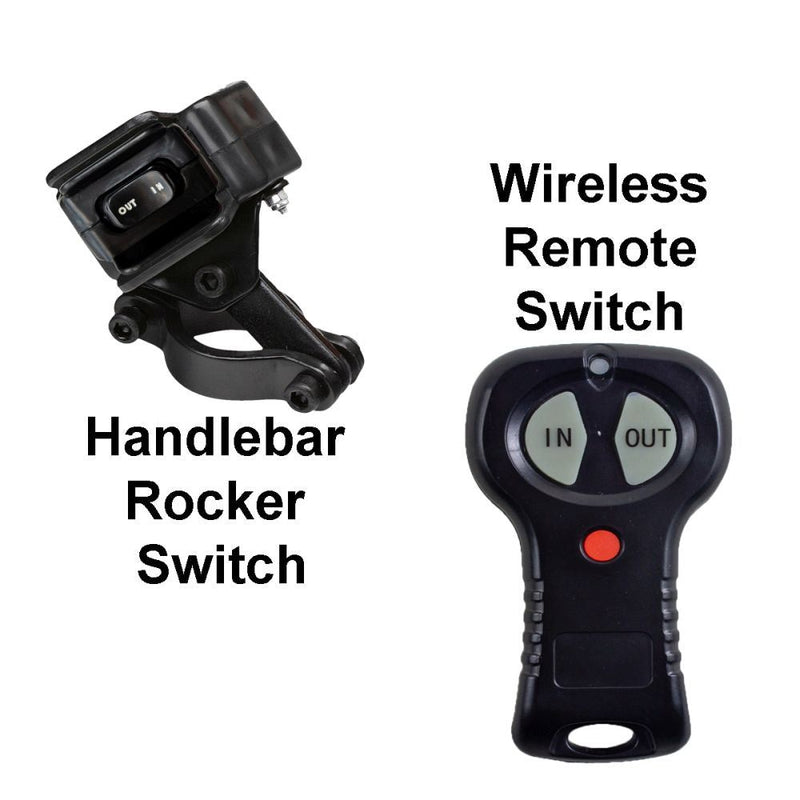

- Wireless Remote Switch
- Handlebar Rocker Switch
- Clevis Hook
- Wiring
- Installation Hardware and Instructions

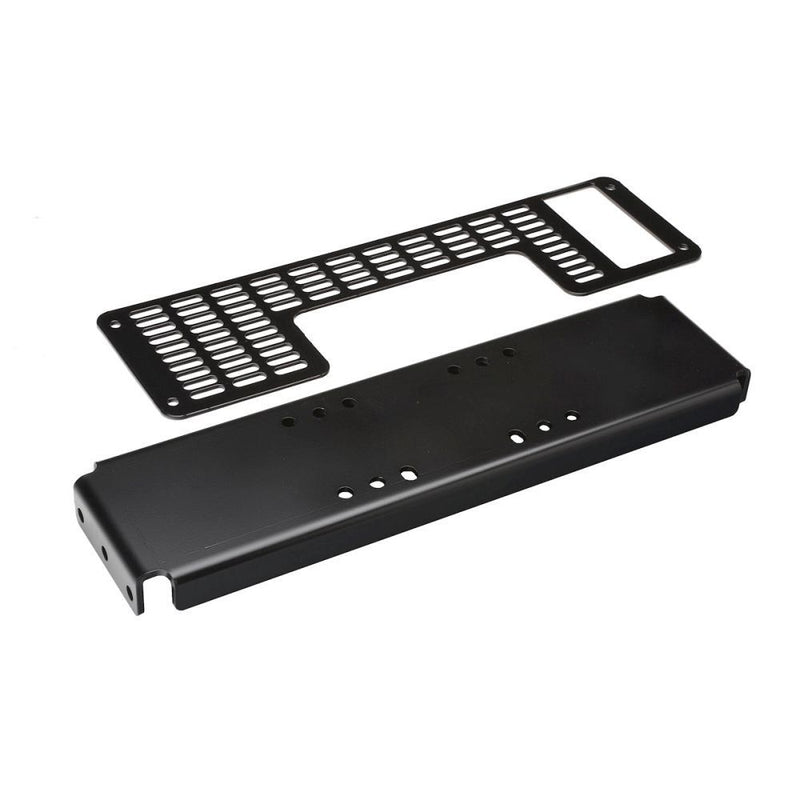

VIPER UTV winch mounts for Polaris Ranger are laser cut and shaped to exacting specifications. By utilizing state of the art computerized equipment, we provide a precise and custom fit for your UTV. Winch mount plates are also designed to utilize the strength of your UTV's frame to optimize winching efficiency.
Features:
Black industrial powder coat finish
Includes mounting hardware and detailed instructions
For use with the standard spool, 4-bolt mounting pattern (3" x 4 7/8")
2002-2008 Ranger 2x4, 4x4
2002-2009 Ranger 6x6
2004-2006 Ranger TM
2005-2008 Ranger XP
2008-2009 Ranger Crew
Please Note: a Universal Fairlead Mount Plate is needed, and is included with all VIPER winch kits. If purchasing just this Mount Plate, the Universal Fairlead Mount Plate will need to also be purchased.
Brand: Viper
Part Numbers:
1x MA11907
1x MD4500_BK
Note: Image is for reference only, actual product may vary slightly.
