Impact Implements Pro 6-Piece Hydraulic Kit for ATV, UTV, & Tractors
NOTES:

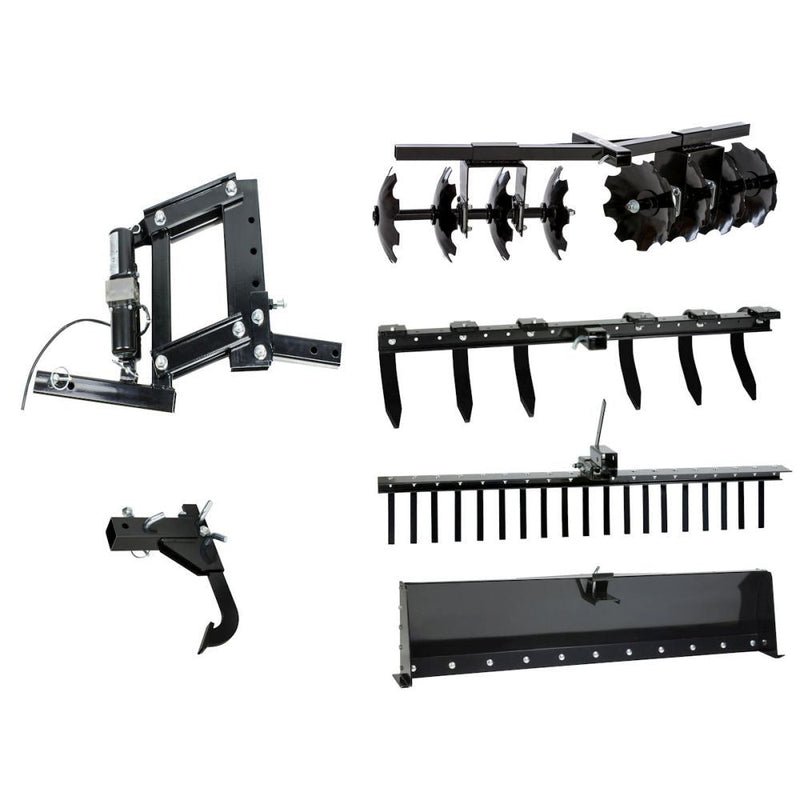

Kit Contents:
- 1-Point Lift Hydraulic System
- Rake with Tipper Latch
- Cultivator
- Blade with Box Ends
- Disc Plow / Harrow
- Middle Buster

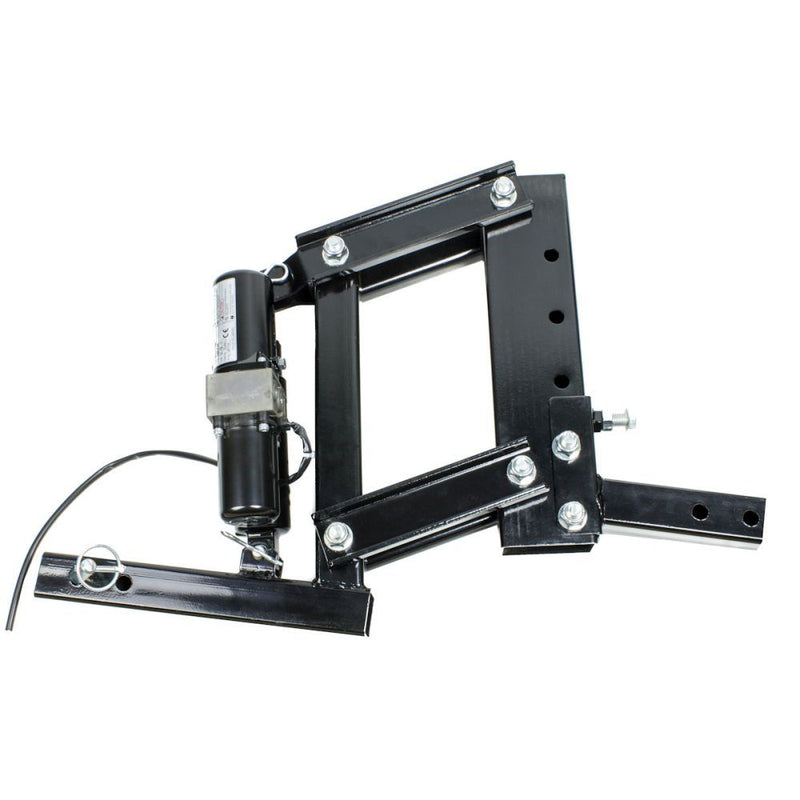

1-Point Hydraulic Lift System
- Heavy Duty, 14-gauge tube steel construction
- Approximately 1,100lbs of pushing force and 800lbs of pulling force
- Hydraulic lift for an additional 10" of fine adjustments
- Amp draw of pump 5A-30A, depending on load
- Fits 2" hitch receiver (not included)
- Weight: 52 lbs

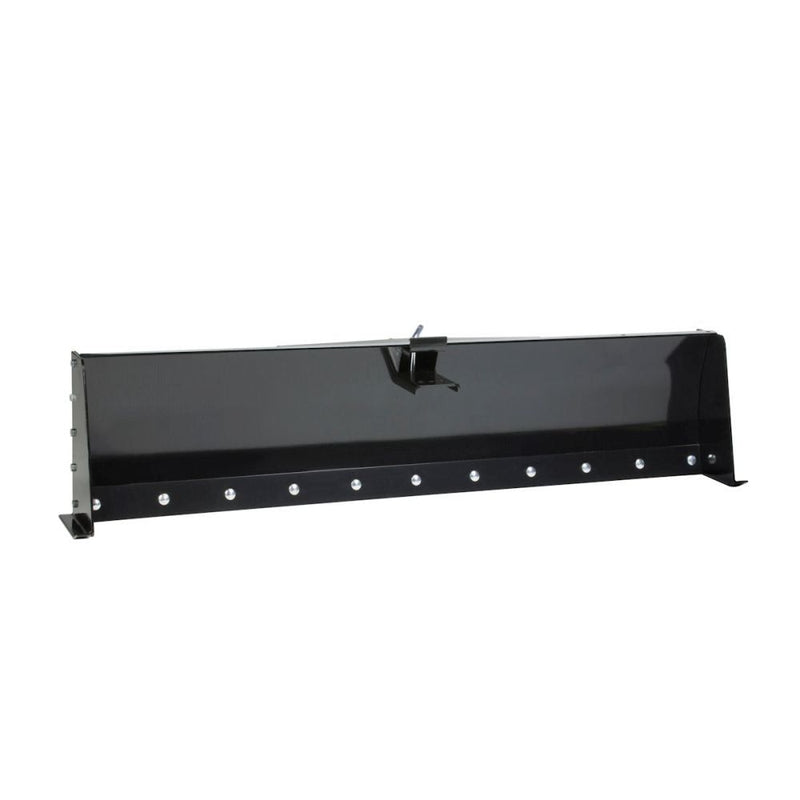

Pro 3-Position Blade with Box Ends
- Three (3) position blade with 12-degree angle adjustment in either direction
- Reversible / Replaceable cutting edge
- Dimensions: 52? (W) x 12? (H)
- Weight: 42 lbs

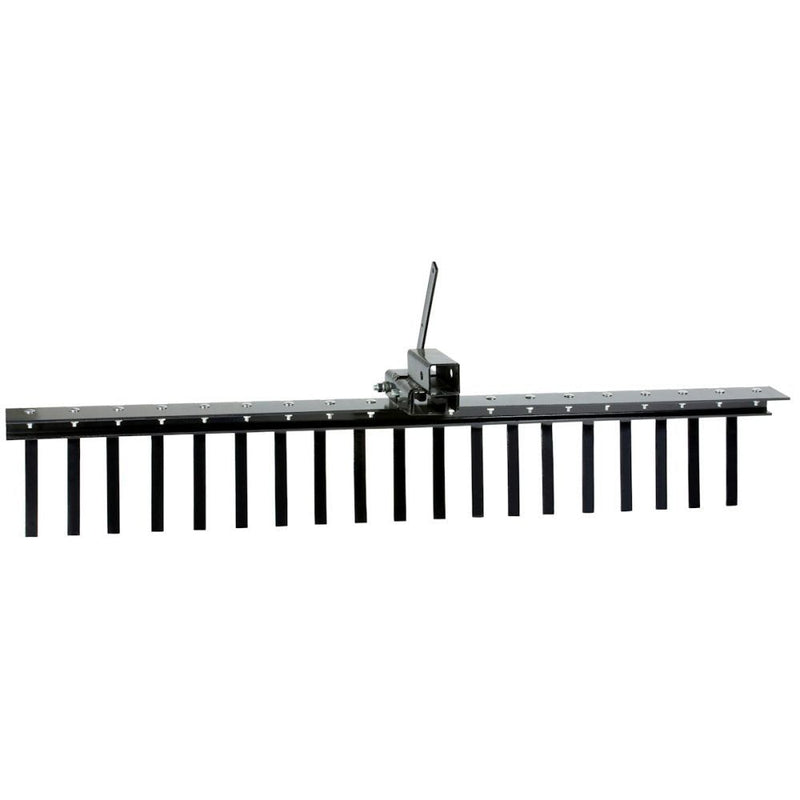

Pro Landscape Rake with Latch
- Nineteen (19), replaceable spring steel rake tines
- Dimensions: 62" (W) x 10.75" (H) x 7.75" (D)
- Tines: 10"(H) x 1" (W)
- Weight: 32 lbs

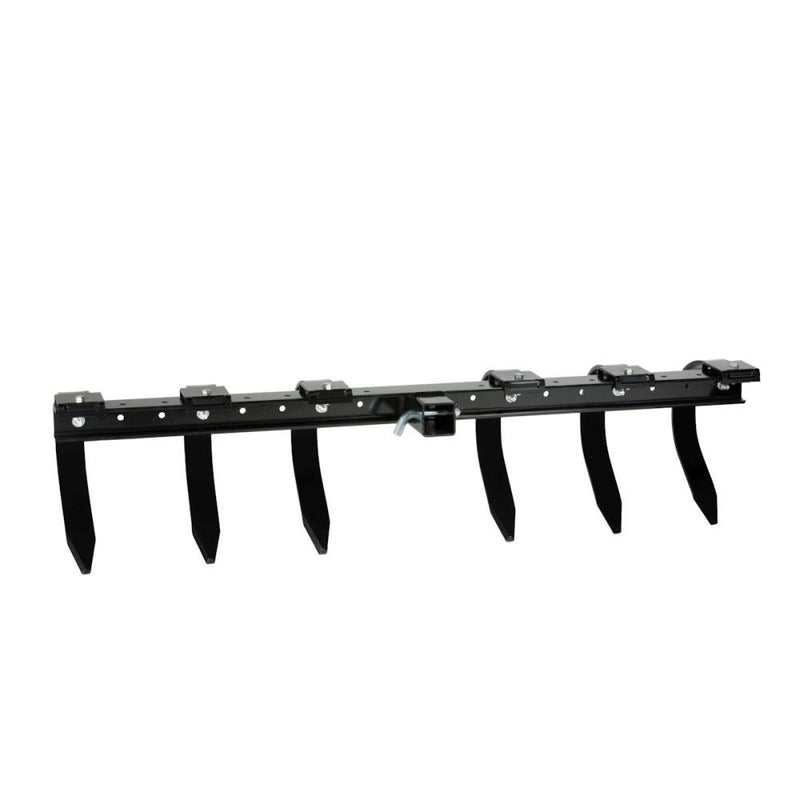

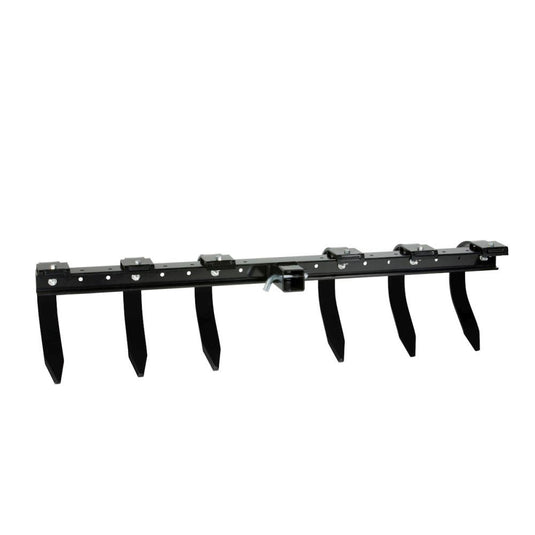

Pro Cultivator
- 49 inch cutting path and six (6), adjustable and replaceable cutting-edge tines
- Dimensions: 50" (W) x 12.5" (H)
- Tines: 2" (W) x 12.5" (H)
- Weight: 40 lbs

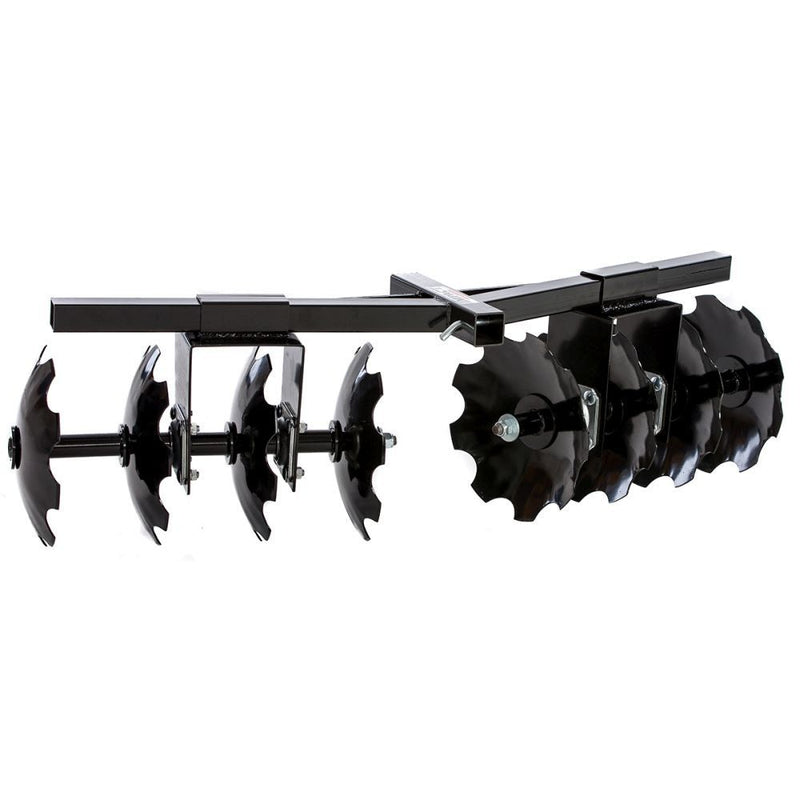

Pro Disc Plow / Harrow
- Features eight (8), 12" notched, hardened steel, cutter disc blades
- 54 inch of cutting width and two (2) heavy duty roller bearings per axle
- 15-degree blade angle of attack
- Integrated weight tray
- Dimensions: 17" (L) x 17" (W) x 1 3/8" (D)
- Weight: 120 lbs

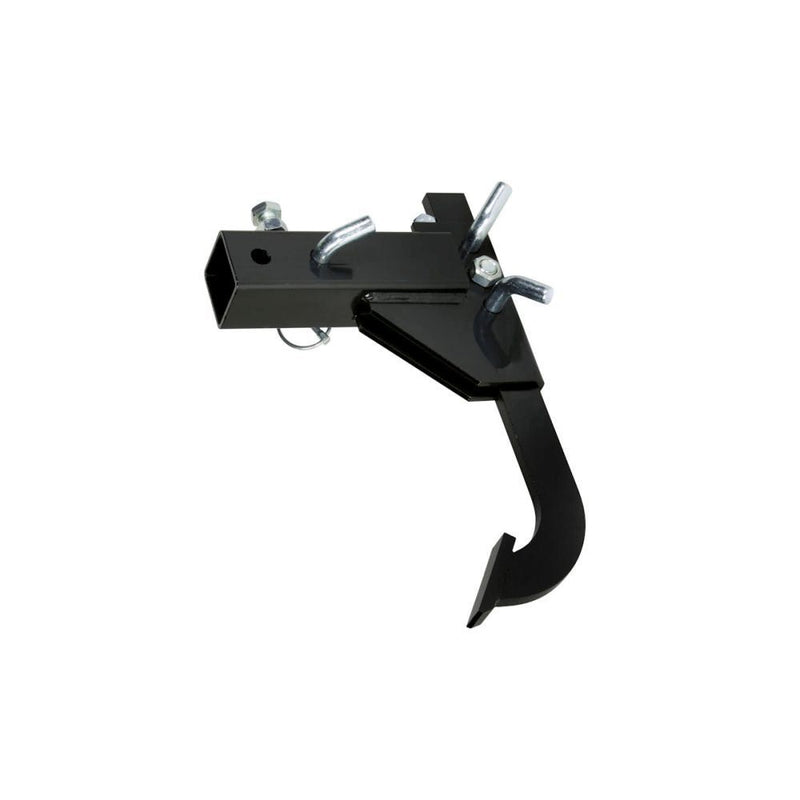

Pro Middle Buster
- Rigid drop shank
- Dimensions: 16" (W) x 9.75" (H)
- Tines: 16" (W) x 5.5" (H)
- Tine Edges: 3" (L) x 1" (W) x 3/8" (D)
- Weight: 40lbs
Brand: Impact Implements
Part Number: IP4999_6_Piece_Hydro_Kit
Note: Image is for reference only, actual product may vary slightly.
