Impact Implements Pro Hydraulic Landscape System for ATV, UTV, & Tractors
NOTES:

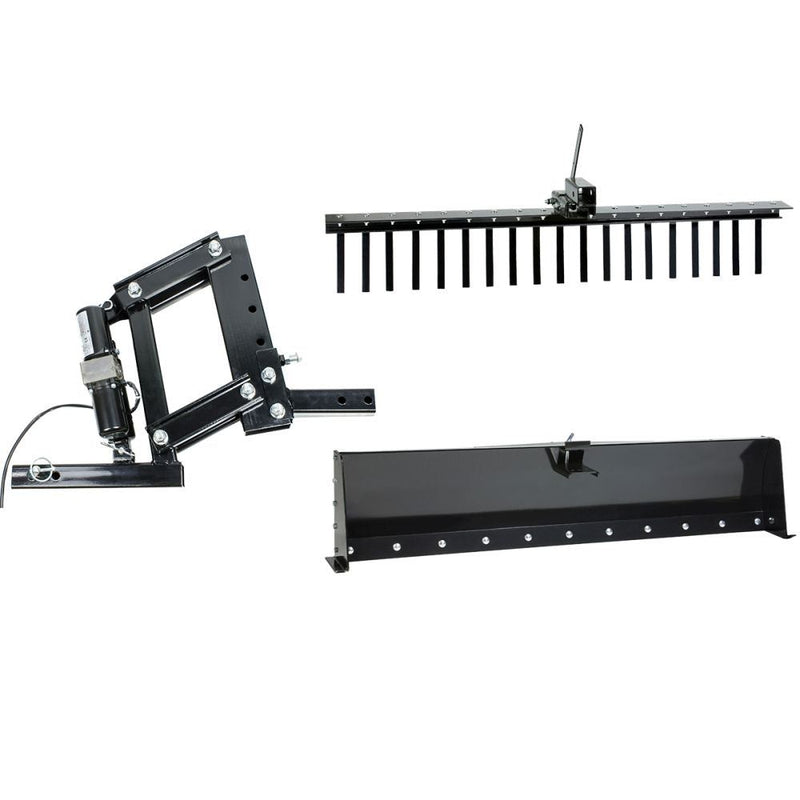

Kit Contents:
- 1-Point Hydraulic Lift System
- 3-Position Blade with Box Ends
- Landscape Rake with Latch

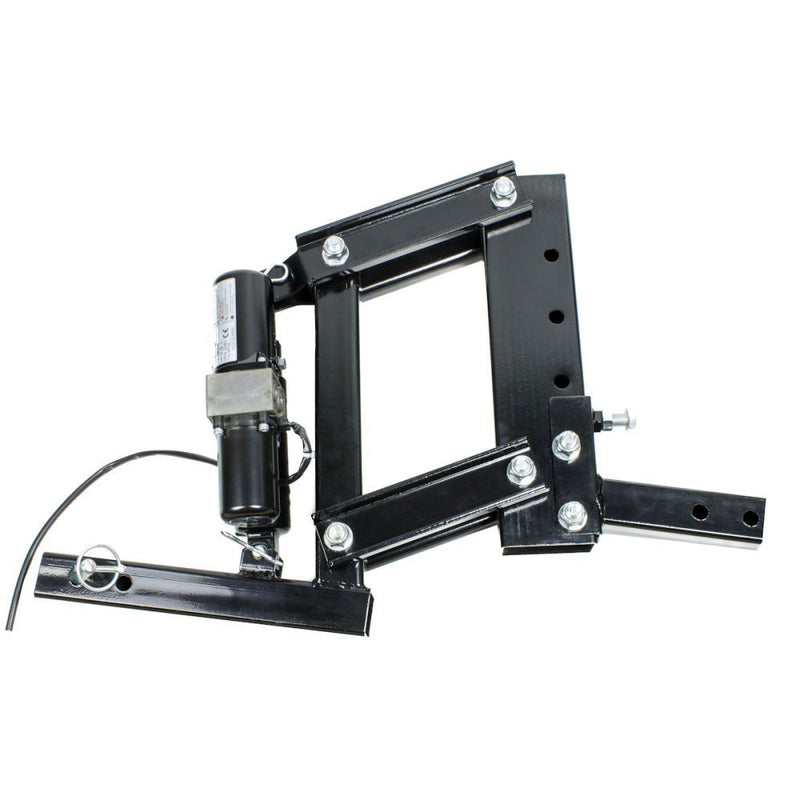

1-Point Hydraulic Lift System
- Heavy Duty, 14-gauge tube steel construction
- Approximately 1,100lbs of pushing force and 800lbs of pulling force
- Hydraulic lift for an additional 10" of fine adjustments
- Amp draw of pump 5A-30A, depending on load
- Fits 2" hitch receiver (not included)
- Weight: 52 lbs

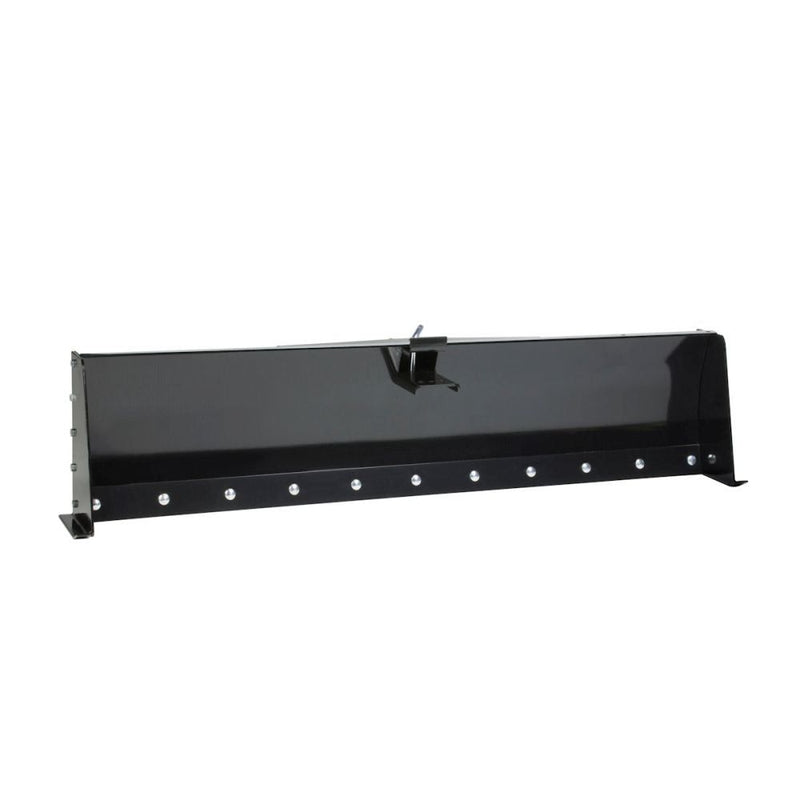

3-Position Blade with Box Ends
- Three (3) position blade with 12? angle adjustment in either direction
- Reversible / Replaceable cutting edge
- Dimensions:
- Blade: 52" (W) x 12" (H)
- Weight: 42 lbs

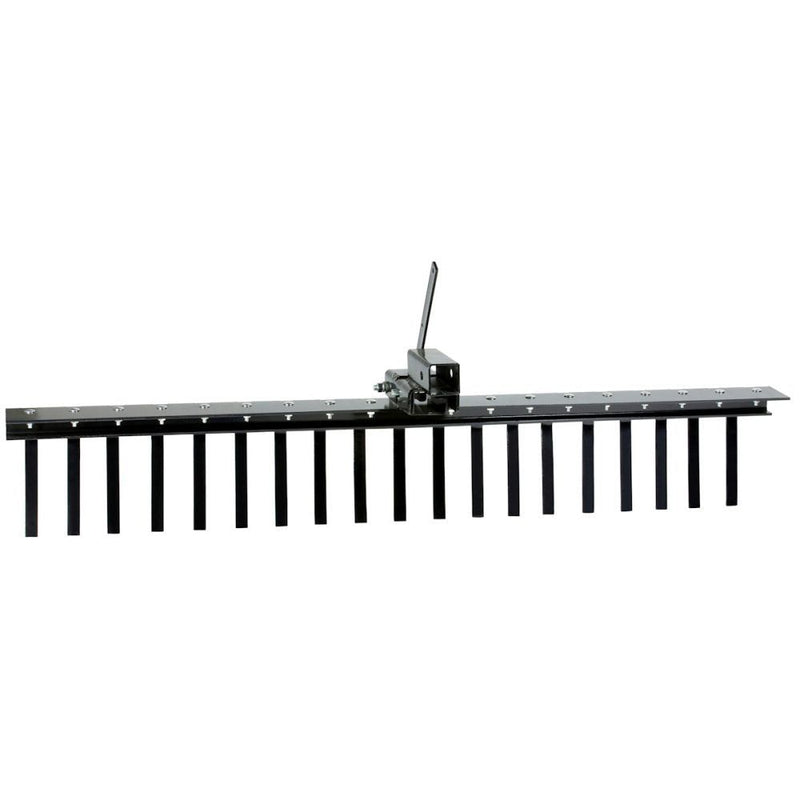

Landscape Rake with Latch
- Nineteen (19), replaceable spring steel rake tines
- Dimensions:
- Rake: 62" (W) x 10.75" (H) x 7.75" (D)
- Tines: 10"(H) x 1" (W)
- Weight: 32 lbs
Brand: Impact Implements
Part Number: IP4999_HydraulicLandscape_Kit
Note: Image is for reference only, actual product may vary slightly.
