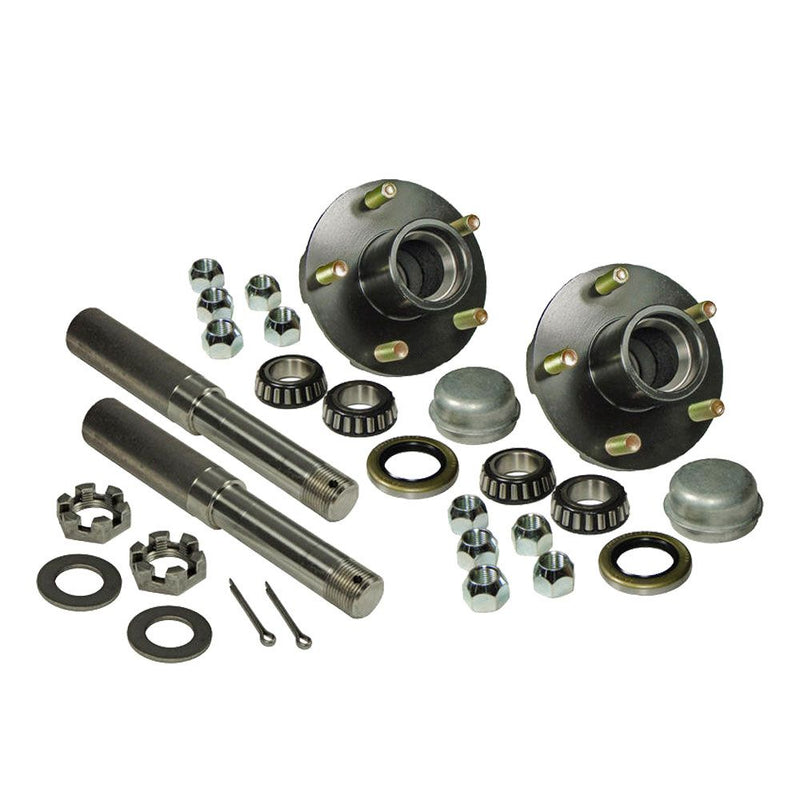

Easily build your own axle with this 2,200 lb. rated assembly. This kit includes (2) - 5-bolt on 4-1/2 inch bolt center hubs for 2,200 lb. axles, (2) - 1-1/16 inch straight spindles, (2) castle nuts, (2) cotter pins, (8) 1/2-20 lug nuts, (2) 1.987 O.D. x 1.249 I.D. grease seals, (4) L-44649 1-1/16 inch I.D. inner/outer bearings and (2) 1.986 O.D. - 1.16 inch depth, dust caps.
- Please Note: Fabricating an axle requires the proper equipment needed to apply a weld. If you are uncomfortable with your welding capabilities, this project should be handled by a qualified welder.
- Pair of 1-1/16 inch straight spindles includes castle nuts and cotter pins
- Bearings included - (4) L-44649 1-1/16 inch inside dimension
- Hubs have pre-installed pressed in races
- Hubs have a 5-bolt pattern on 4-1/2 inch bolt circle. Pilot diameter 2-1/2 inch, flange diameter 5.56 inch and measures 4-1/4 inch tall.
- Spindles feature a ROUND 1-1/4 inch stock diameter with a bearing surface of 1-1/16 inch

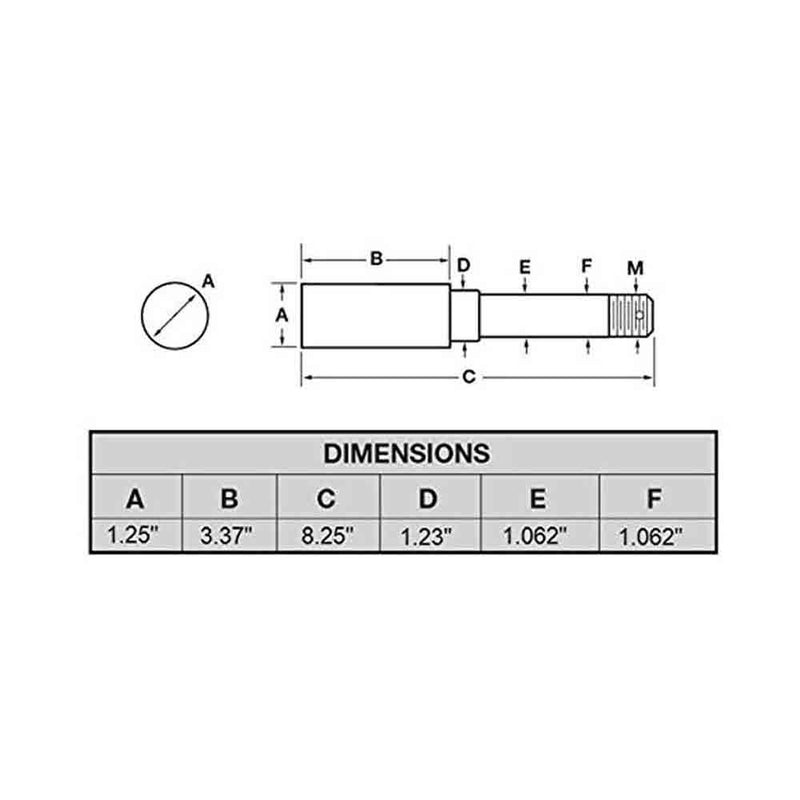

- See picture 2 for spindle dimensions
