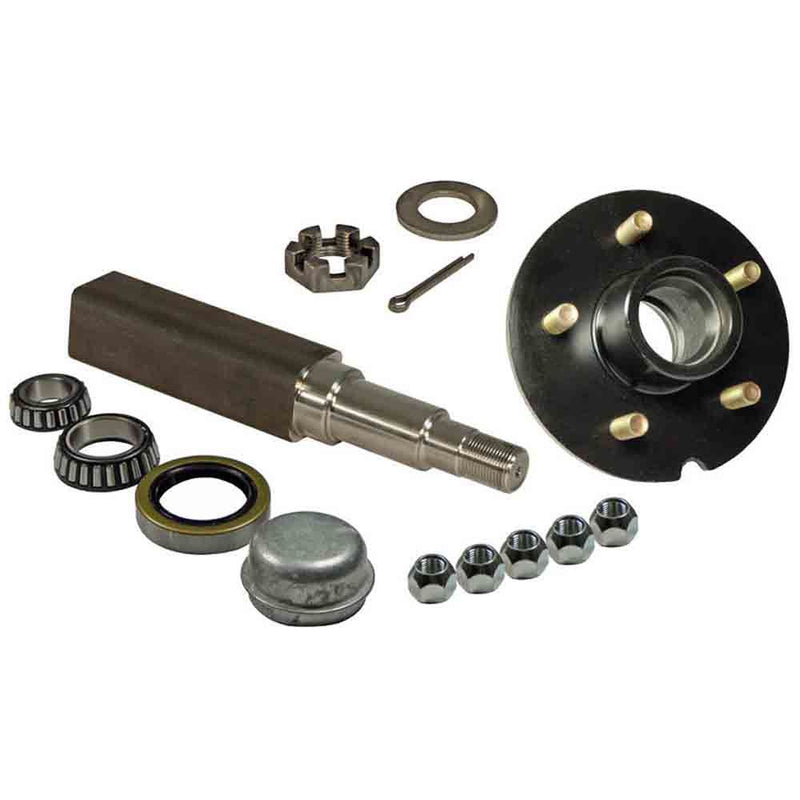

Easily build your own axle with this 3,500 lb rated assembly. (Rated as a pair) This kit includes (1) 5-Bolt on 4-1/2 inch bolt center hub for 3,500 lb axles, (1) 1-3/8 inch to 1-1/16 inch tapered spindle, (1) castle nut, (1) cotter pin, (5) 1/2-20 lug nuts, (1) 2.561 inch O.D. x 1.719 inch I.D. grease seal, (1) L-44649 1-1/16 inch I.D. bearing, (1) L-68149 1-3/8 inch I.D. bearing, (1) spindle washer and (1) 1.986 inch O.D. x 1.16 inch depth dust cap.
- Please Note: Fabricating an axle requires the proper equipment needed to apply a weld. If you are uncomfortable with your welding capabilities, this project should be handled by a qualified welder.
- 1-3/8 inch to 1-1/16 inch tapered spindle
- Bearings included - (1) L-68149 1-3/8 inch I.D. and (1) L-44649 1-1/16 inch I.D.
- Hub has pre-installed pressed in races
- Hub has a 5-bolt pattern on 4-1/2 inch bolt circle. Pilot diameter - 2.59 inch, flange diameter - 6-1/2 inch and measures 4-1/4 inch tall.
- Spindle features a SQUARE 1-3/4 inch stock diameter with a tapered spindle surface of 1-3/8 inch and 1-1/16 inch

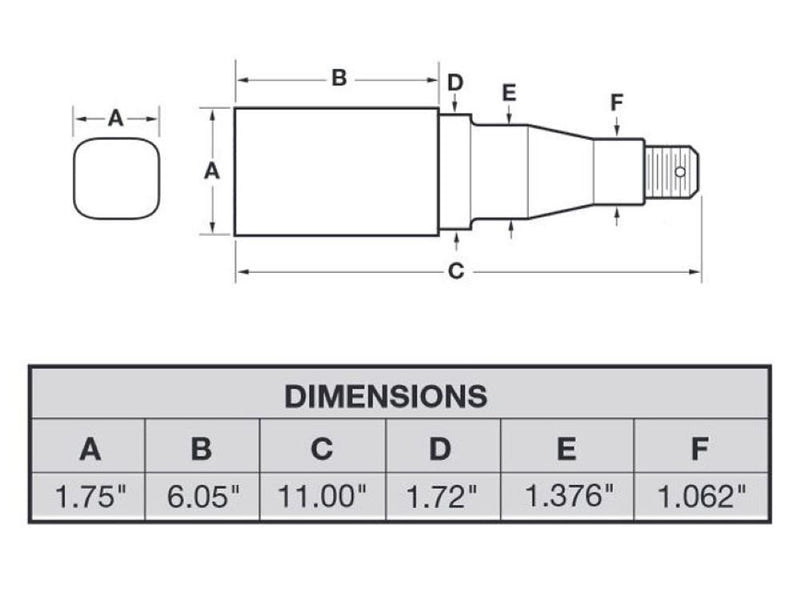

- See picture for spindle dimensions
