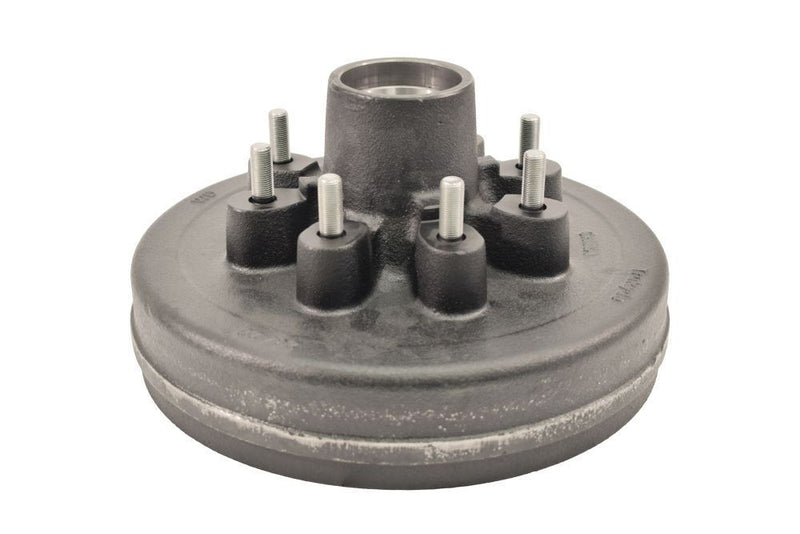

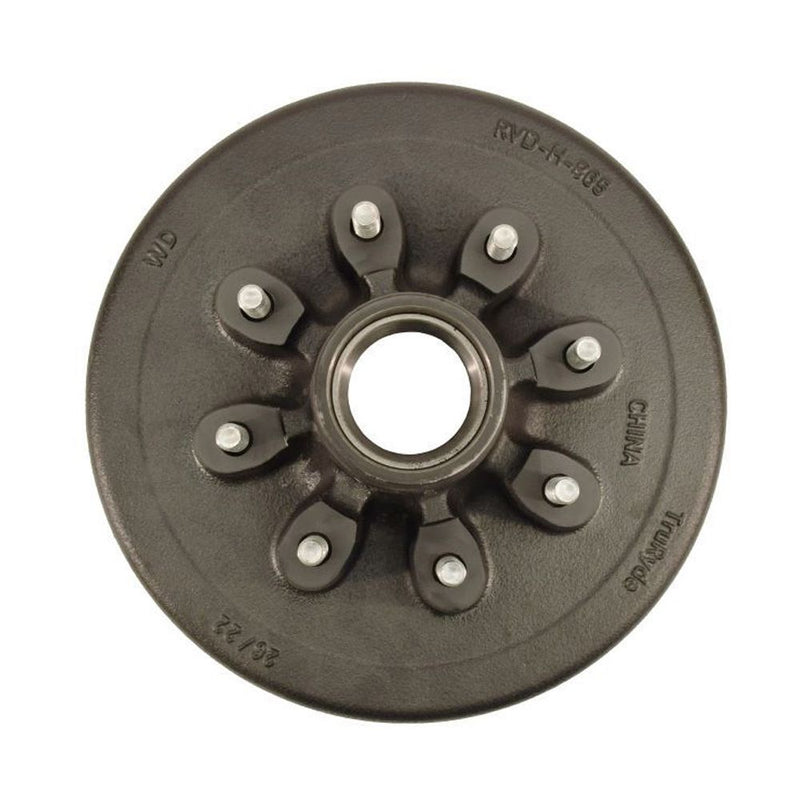

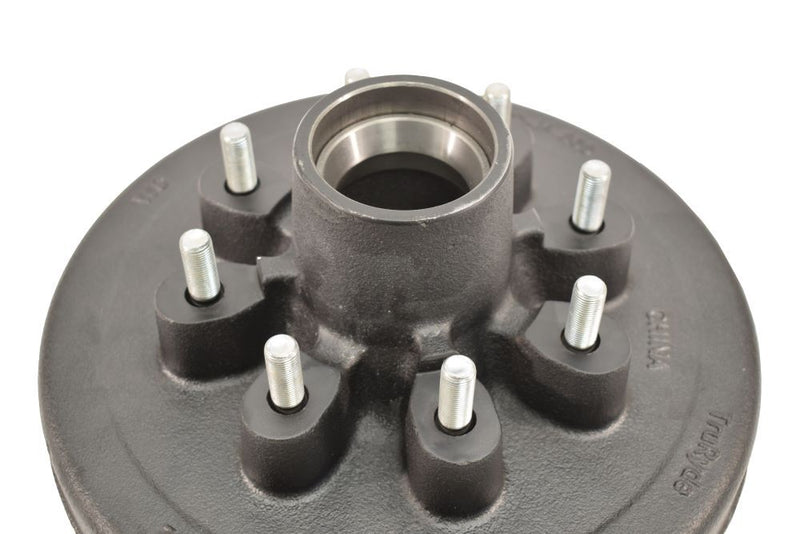

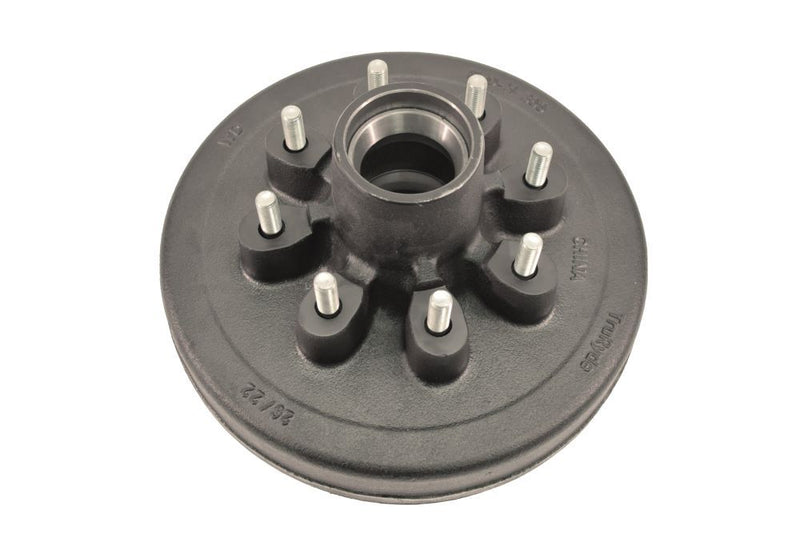

Trailer Hub And Drum, 8 On 6-1/2" Bolt Circle, 3,500 lb. Capacity For 1-3/4" To 1-1/4" Tapered Spindle - 1/2 Inch Lugs
Trailer Hub And Drum, 8 On 6-1/2" Bolt Circle, 3,500 lb. Capacity For 1-3/4" To 1-1/4" Tapered Spindle - 1/2 Inch Lugs
Trailer Hub And Drum, 8 On 6-1/2" Bolt Circle, 3,500 lb. Capacity For 1-3/4" To 1-1/4" Tapered Spindle - 1/2 Inch Lugs
Trailer Hub And Drum, 8 On 6-1/2" Bolt Circle, 3,500 lb. Capacity For 1-3/4" To 1-1/4" Tapered Spindle - 1/2 Inch Lugs
Load image into Gallery viewer, Trailer Hub And Drum, 8 On 6-1/2" Bolt Circle, 3,500 lb. Capacity For 1-3/4" To 1-1/4" Tapered Spindle - 1/2 Inch Lugs
Load image into Gallery viewer, Trailer Hub And Drum, 8 On 6-1/2" Bolt Circle, 3,500 lb. Capacity For 1-3/4" To 1-1/4" Tapered Spindle - 1/2 Inch Lugs
Load image into Gallery viewer, Trailer Hub And Drum, 8 On 6-1/2" Bolt Circle, 3,500 lb. Capacity For 1-3/4" To 1-1/4" Tapered Spindle - 1/2 Inch Lugs
Load image into Gallery viewer, Trailer Hub And Drum, 8 On 6-1/2" Bolt Circle, 3,500 lb. Capacity For 1-3/4" To 1-1/4" Tapered Spindle - 1/2 Inch Lugs

Trailer Hub And Drum, 8 On 6-1/2" Bolt Circle, 3,500 lb. Capacity For 1-3/4" To 1-1/4" Tapered Spindle - 1/2 Inch Lugs

$146.65
4 payments of $36.66

SKU: HD-1208-02

This is a pre order item. We will ship it when it comes in stock.
Sold and shipped by Rigid Hitch

12" Hub and Drum has 8 on 6-1/2" bolt circle for 1-3/4" To 1-1/4" tapered spindle for a 5,200lb to 6,000lb axle, hub capacity 3,500 lbs.  Includes pressed in outer bearing races.



  • For use with 12" x 2" electric or hydraulic brakes.
  • Flange diameter is 8-1/2"
  • Lugs are 1/2"-20



The center hole (pilot hole) in the wheel needs to be 4-1/2" in diameter to use this hub/drum.



Not Included:
